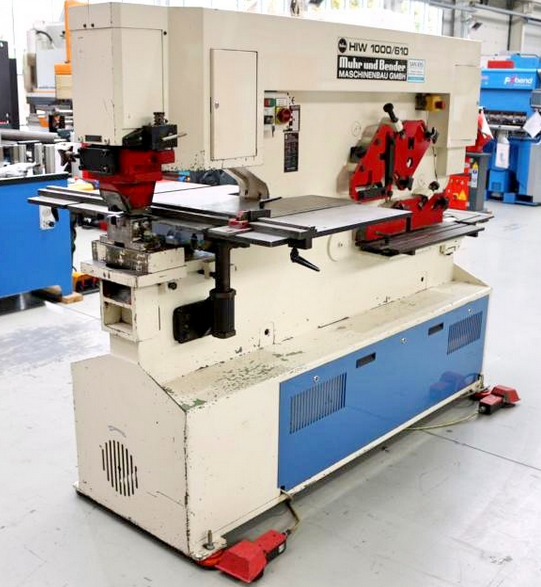

Muhr & Bender HIW 1000/610 100 T

Press force 100 t
Punching capacity 40 in 22 mm
L-beam 160 × 16.0 mm
Square bar 50.0 mm
Round bar 50.0 mm
Flat steel 600 × 15.0 / 400 × 20.0 mm
Throat depth 610 mm
Motor power 8.5 kW
Machine weight 3150 kg
Machine dimensions (L×W×H) 2200 × 1400 × 1830 mm
Control Conventional
Robust electro-hydraulic profile steel shear
Punching station with quick-change device and die holder
Large support table with movable stop
Continuous stroke adjustment with jog/setup mode
Triangular notching station with support table
Bar, profile, and angle steel shear
Flat steel station with support and guide table
Various punches and dies in drawer cabinet
Electric contact length stop
Two foot switches
Operating instructions (PDF)
