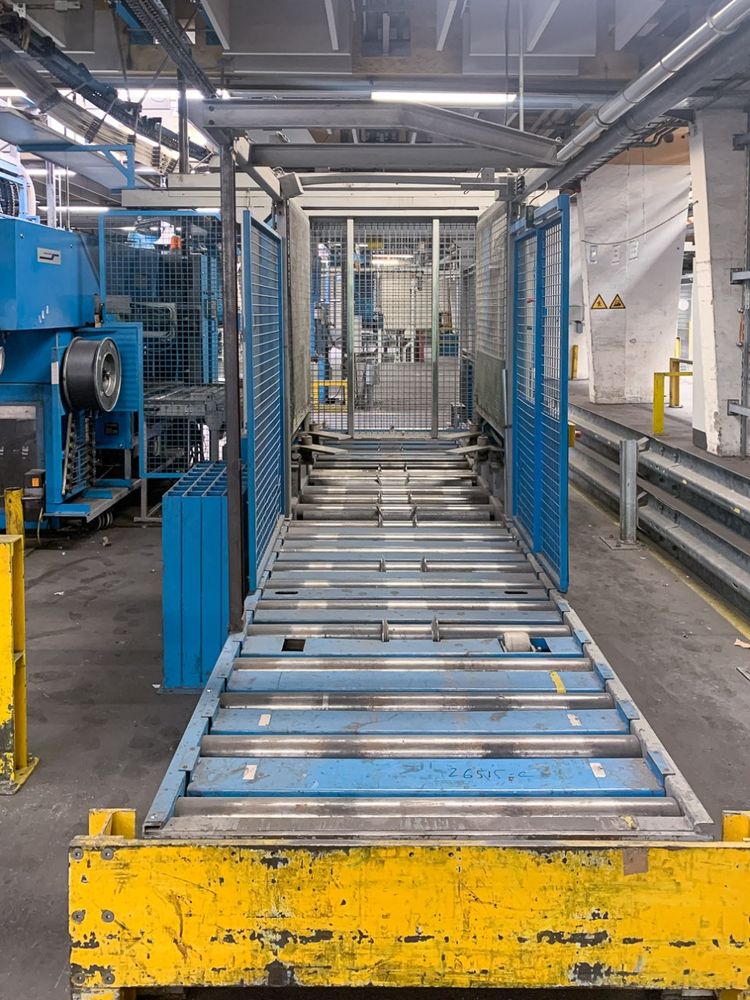

MULLER MARTINI 244 Jumbo

Horizontal log stacker
Min product size: 200 mm x 110 mm
max product size: 480 x 320 mm
Product thickness: 16-96 pages
Log building: horizontal
Log length: 800 - 1200 mm (compressed)
Cycle time: min 45 s/log
High infeed: ~1600 mm
End board feeder: ~80 end boards
Thickness end boards: 8-13 mm
Strapping: Strapex, 12 mm PP-strap
Air: 5 Nm3/h @ 6 bar
Electrical: 380 VAC, 3 PH, 50 Hz, 4,5 kW
Dimensions (L x W x H): appr. 4000 x 1500 x 2000 mm
Weight: ~4100 kg
with infeed conveyor (descending)
Log delivery to the right for pick-up with palletizer

As single machine or as complete line together with:
Müller Martini 397 log palletizer for Euro pallets
Müller Martini 230 pallet conveying system for Euro pallets
