MULLER MARTINI ACORO A5
EUROPE (Western and Northern)
Book binding machine
Type: 3026-20
Equipped with:

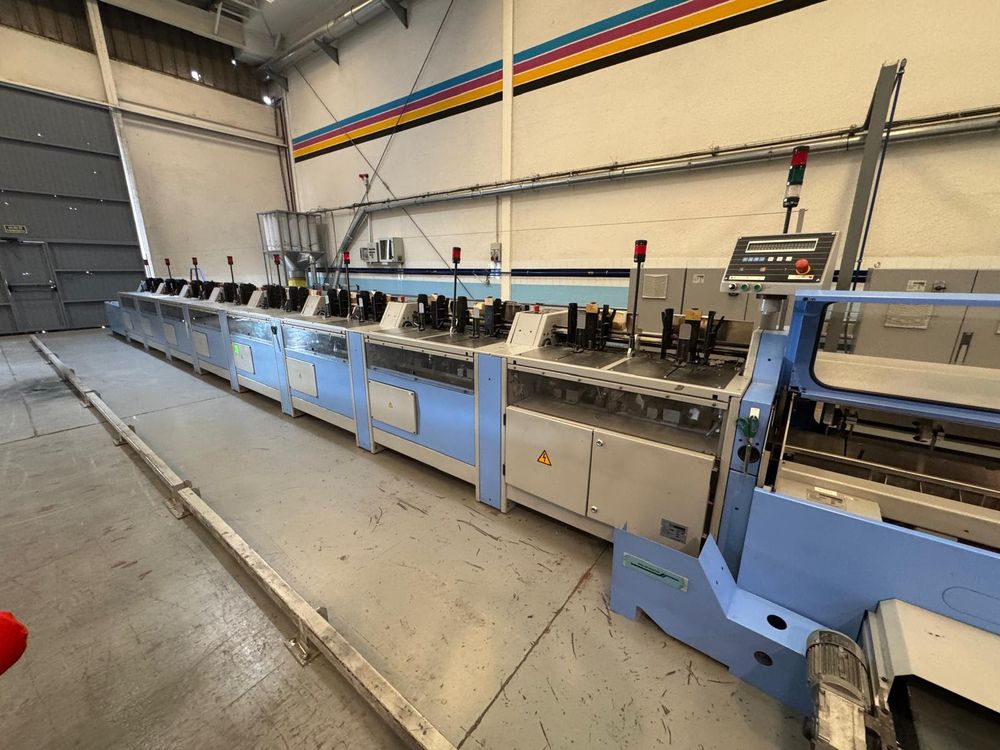

16 gatherer stations 1571/21’’ + manual feeding station
ASAC y ASIR III control (Automatic sheet recognition system by camera)
Reject gate type 3715 with delivery belt
Turn element type 3641
CRISS-COSS delivery type 3635
BOOK BLOCK FEEDER type 3642

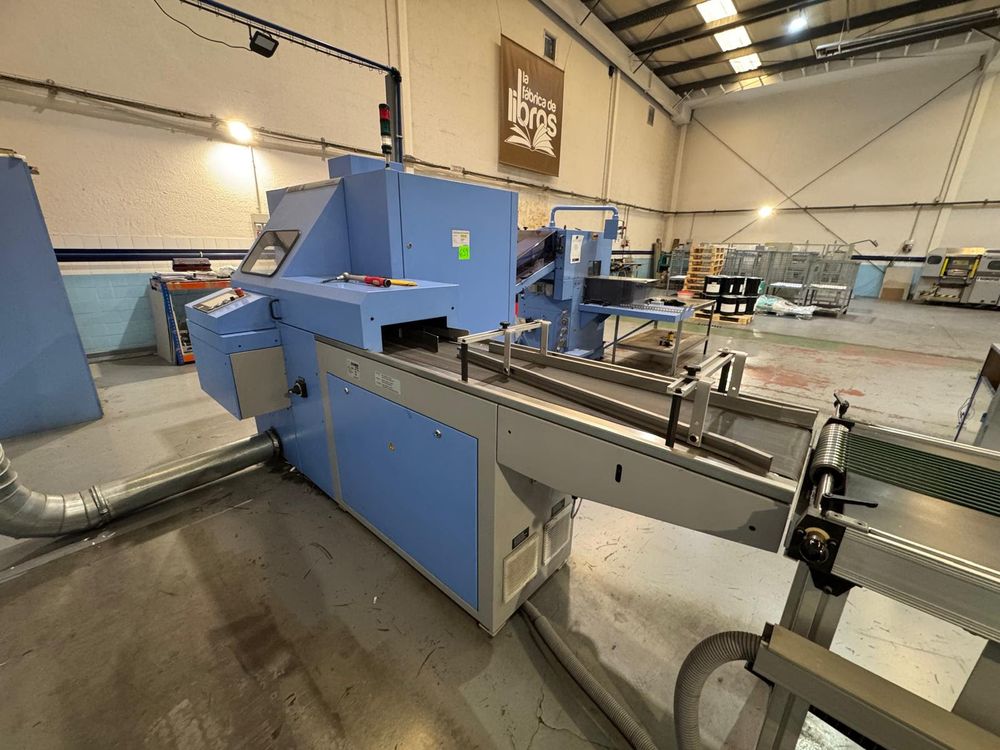

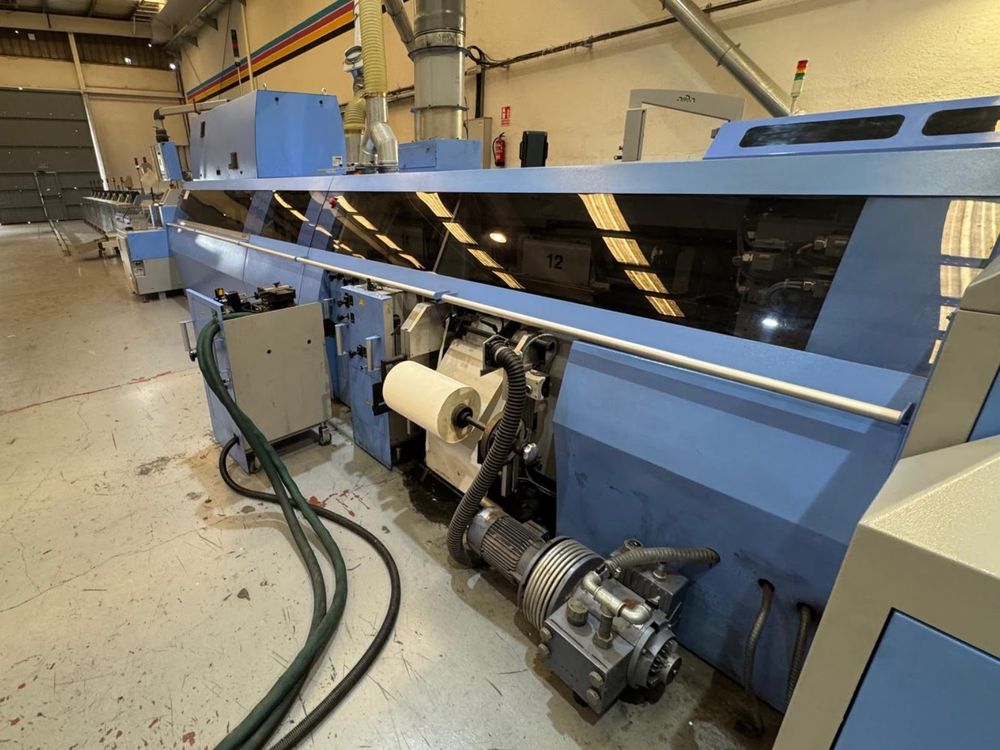

Muller Martini ACORO A5 model 3026-20 with 20 binding clamps
Rotating control panel with automatic adjustments
Monitor with Touch-Screen
Milling station, notching and brushing (spine preparation units)
Hot-melt spine PM 80 and lateral gluing PM 18 with pre-heating glue tanks
PUR gluing system PUR MOD30
GAUZING STATION
Pile cover feeder
2 x spine pressure stations
Laydown delivery
Conveyor belt system with independent control panel (50 meters approx)

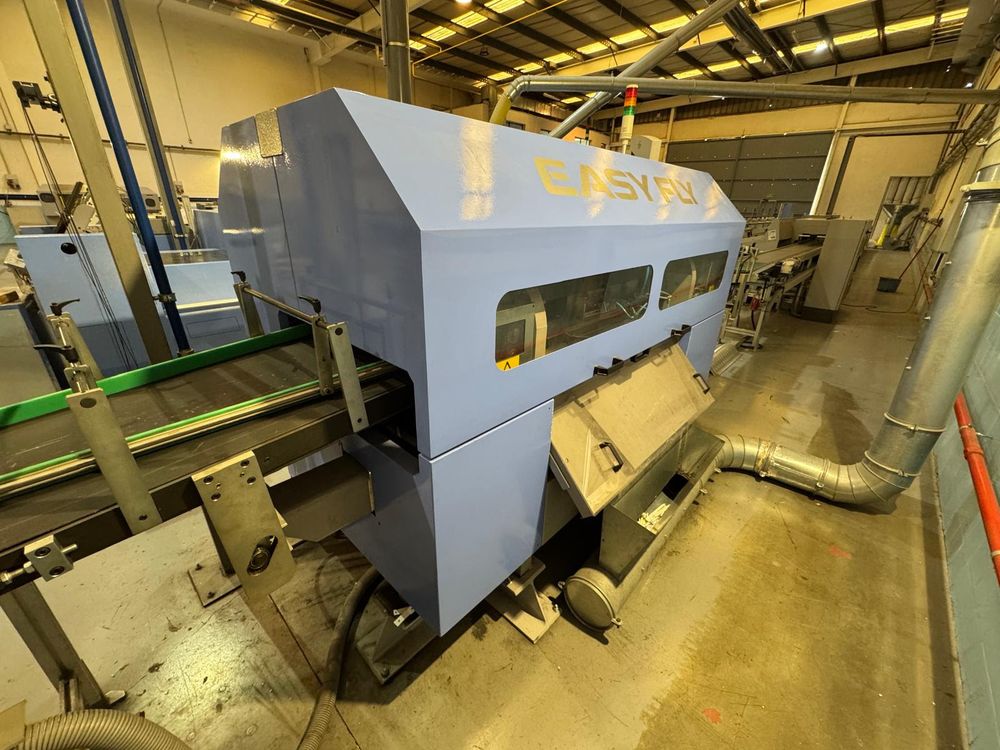

Front cutting machine SCS EASY FLY

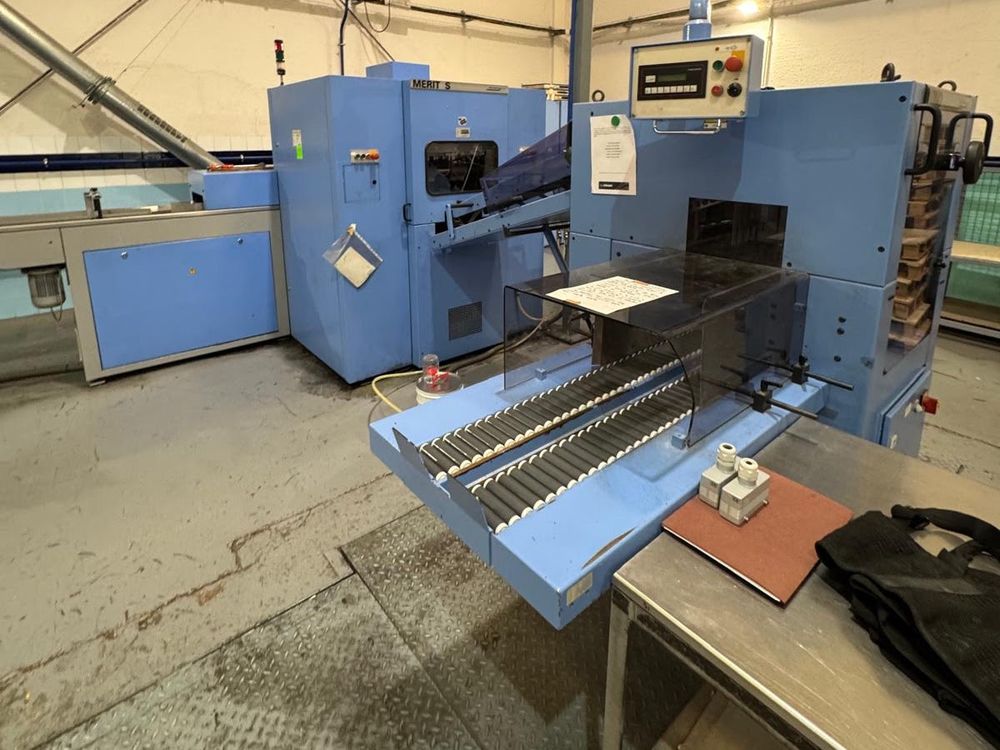

Three knife trimmer Muller Martini MERIT-S type 3671
Compensating stacker Muller Martini UNO with roller delivery
Size preparing table with digital screen
Pumps and manuals
Technical specifications:
Mechanical speed: 1.200 – 5.000 cycles/hour
Format min: 140 x 100mm
Format max: 430 x 320mm
Width max: 60mm
