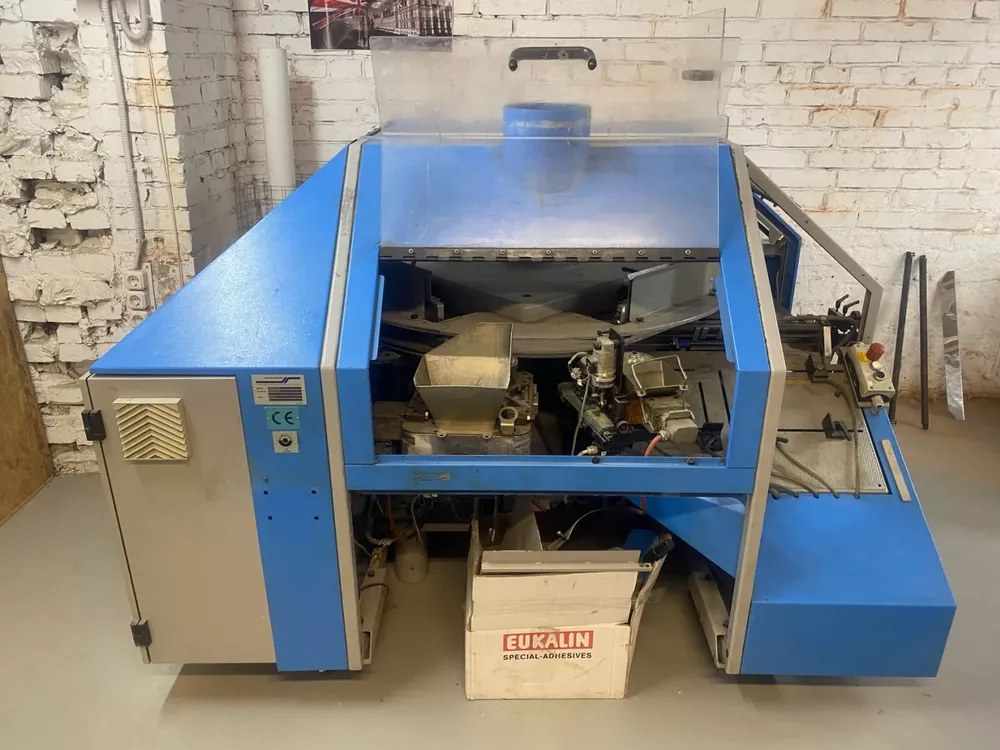

MULLER MARTINI AmigoPlus 1580

Hot Melt Binder
4 carriage, in good condition, ready for testing.
Muller Martini AmigoPlus 1580 complete set: 4 clamps (carriages) for book blocks; milling station and roughening section
with the possibility of quick section lowering; free-standing waste exhaust with cyclone; gluing unit
for coating the spine with hot-melt glue with the possibility of adjusting the length of the coating.
Accurate glue dosage using two rollers, glue temperature control; gluing unit for side coating of the book block with hot-melt glue with the possibility of adjusting the length of the coating.
Accurate glue dosage using two rollers; suction of vapors from the glue application area
with a pipe outlet; non-stop cover feeder with creasing rollers; electronic cover feed control;
block crimping section from the bottom and sides to form the spine; tray feed compressor; electronic control panel with display
As an option, the Amigo can be equipped with an extended belt feeder and a hot-melt preheating tank.

Technical specifications :
Mechanical speed (infinitely adjustable): 300 - 1500 blocks per hour
Main product parameters: Spine length 120–400 mm
Book block width 95–270 mm
Book block thickness 3–40 mm
Cover width 193–580 mm
