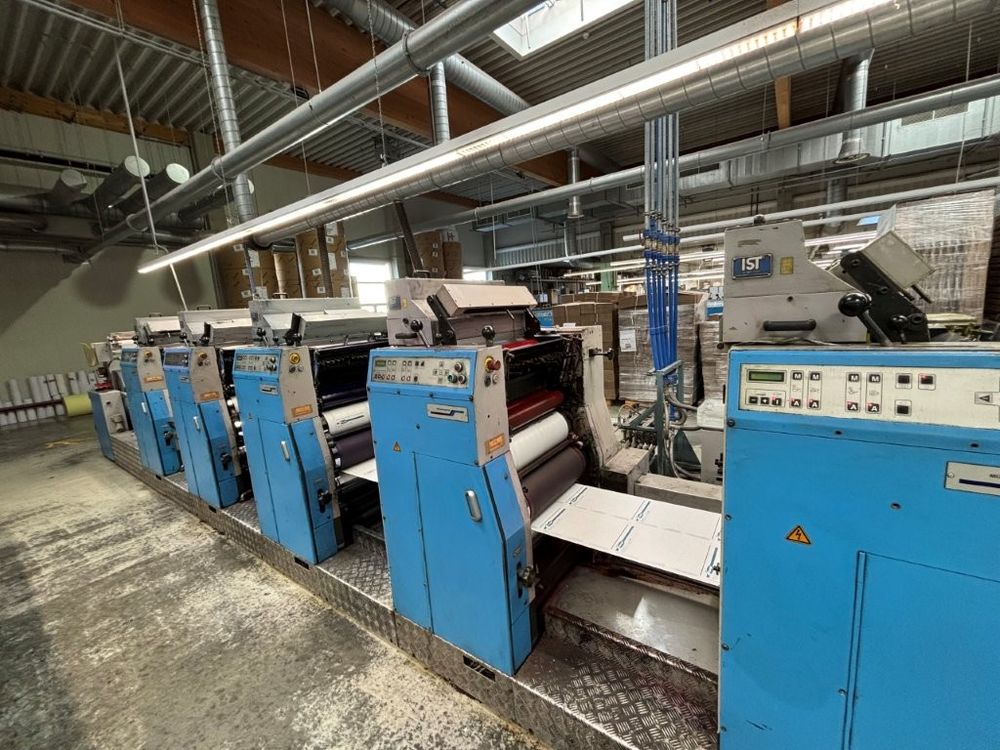

MULLER MARTINI Concept UV 5 508 mm

5-color press, type MM 2 (24”), in very good condition and available immediately.
This press has been carefully maintained and is equipped with several valuable options and components, ideal for high-quality
UV printing and finishing applications.

Description:
Format range 16–28 1/8"
Cylinder circumference 24” = 609.6 mm
Printing width max. 508 mm (min. 200 mm)
Paper width max. 520 mm (20 ½”) R
oll diameter max. 1270 mm (50”)
Core diameter pneumatically – for 70 mm cores (option for 76 mm)
Printing sleeves one 76 mm spindle for MM 1, 2, 3 – not valid for Alpha UV Drying up to 3 UV lamps, 2–3 per unit (air and water cooled)
Side register yes – switchable
Web direction Main drive 1/3 – straight
Web tension control Work 1+2, Work 2+3
Web tension 8 mm
Printing units 1 Station – central shaft Ø 70 mm
Embossing station 1 station for embossing or die-cutting
Matrix waste removal 2× rewind – double shaft
Sheeter 1 sheeter with Ø 70 mm shafts
Punching unit 2 double punching stations (fixed layout)
Die-cutting cylinder 1 magnetic cylinder with micrometric fine adjustment
Cross perforation window perforation and 80 g paper suitable
Longitudinal perforation 2 cylinders with 4, 6, 8, 12 divisions – perf. pitch 23.3 mm
Punching stations 2 stations – pneumatic punch removal
Slitting 3× upper, lower and edge trim knives
Cross cutting external sheeter – cross knife Folding G17 special folding, min. sheet 210 mm
Cross cutting type 6–24 teeth rotary knife, fully adjustable
Unwinder Motorised, roll Ø max 1270 mm, 70/76 mm cores
Rewinder Motorised, roll Ø max 1270 mm, 70/76 mm cores
Plate mounting 1 pc 70 mm sleeve, 1 pc 76 mm sleeve for Graphac
Printing pressure 0.14 mm adjustment
Web thickness up to 0.22 mm printing thickness
Printing speed up to 250 m/min

TOOLING & ACCESSORIES :
Printing sleeves and magnetic cylinders included
Several punching, slitting and perforating tools
UV lamps and cooling system
Complete documentation and technical drawings available
GENERAL CONDITION The machine is in very good condition, clean and complete.
