MULLER MARTINI CORONA C15 S/35

Perfect Binding Line
Overview:
3681 gathering machine
PFAFF crane system (year 2023)

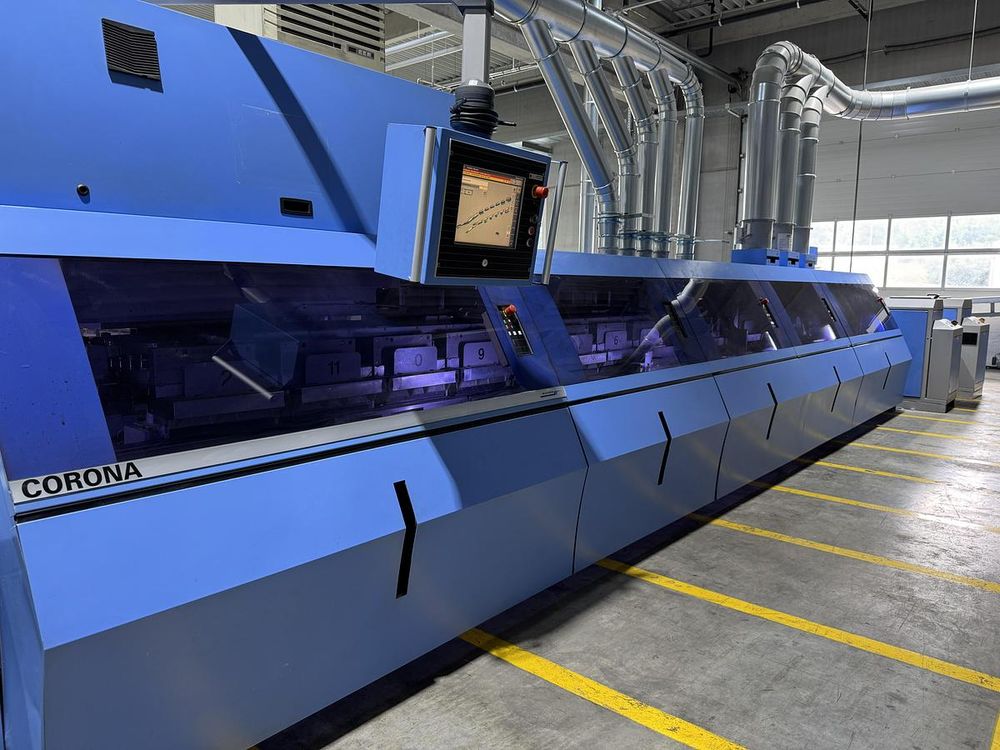

CORONA C15 S/35 perfect binder
3520 transport and drying line
3672 ZENITH S three knife trimmer
3631 CB 16 book counter stacker

Configuration:
3681 gathering machine
12 stations (expandable up to 16 stations)
automatic signature thickness control ASAC and automatic signature type control ASIR 3
10 streamfeeder 3738 (3x year 2008, 6x year 2006, 1x year 2003)
reject unit 3714 with delivery conveyor to the left
set-up element 3641
2 jogging elements 3643
separating element 3646
transfer to the binder
vaccum pumps


PFAFF crane system (year 2023)
2 GRAMATEC bundle clamp CL200
GRAMATEC chain lift system CH200-2


CORONA C15 S/35 (18") perfect binder
35 clamps
commander
main milling station (without dust exhaust system)
2 separate spine preparing units (equalizing, notching)
brushing station
1st Hotmelt spine gluing unit with premelter ICS C80 for spine gluing
Hotmelt side gluing unit with premelter CLS C30 for side gluing
2nd Hotmelt spine gluing unit with premelter ICS C160 for spine gluing
stream cover feeder
2 pressing stations
lay down device

Technical specifications:
mechanical speed: up to 15.000 cycles/h
size range max.: 360 x 310 x 60 mm
size range min.: 140 x 100 x 2 mm

3520 transport and drying line
incl. emergency delivery with delivery conveyor to the right


3672 ZENITH S three knife trimmer
colour display with touch screen
right hand infeed
standard changeable cutting tables (no. 4 – 17)
knife changing device

Special equipment:
2 set of knives

Technical specifications:
mechanical speed: up to 7.000 cycles/h
size range uncutted max.: 384 x 340 mm
size range uncutted min.: 140 x 73 mm
size range cutted max.: 304 x 310 mm
size range cuttes min.: 136 x 100 mm
book thickness: 2 - 70 mm

3631 CB 16 book counter stacker
delivery belt to the right
delivery belt to the left with roller conveyor

Technical specifications:
mechanical speed: up to 18.000 cycles/h
size range max.: 450 x 340 x 70 mm
size range min.: 140 x 100 x 3 mm
