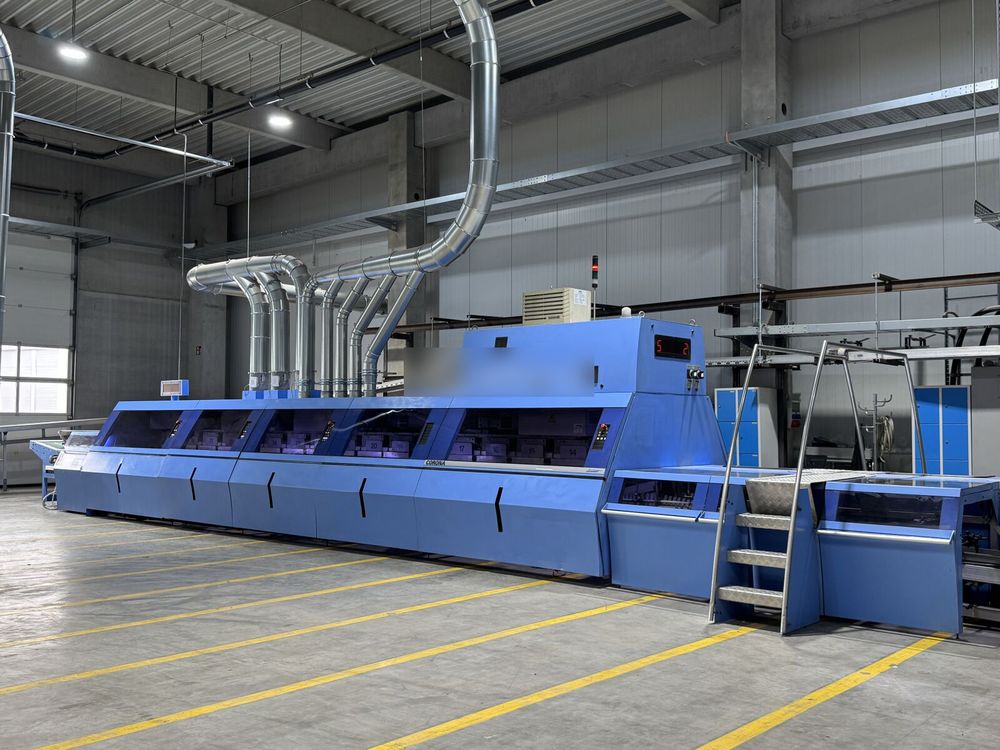

MULLER MARTINI Corona C15 S/35

Equipment :
Gathering Machine – Müller Martini 3681
12 gathering stations (expandable up to 16)
Automatic signature thickness control ASAC
Automatic signature type control ASIR 3
10 stream feeders 3738
Reject unit 3714 with delivery conveyor to the left
Set-up element 3641
2 jogging elements 3643
Separating element 3646
Transfer to binder
Vacuum pumps

Crane System – PFAFF (2023)
2 GRAMATEC bundle clamps CL200
GRAMATEC chain lift system CH200-2

Perfect Binder – Müller Martini CORONA C15 S/35 (18"):
35 clamps
Commander control
Main milling station (without dust extraction)
2 separate spine preparation units (equalizing, notching)
Brushing station
1st Hotmelt spine gluing unit with premelter ICS C80
Hotmelt side gluing unit with premelter CLS C30
2nd Hotmelt spine gluing unit with premelter ICS C160
Stream cover feeder
2 pressing stations
Lay-down device

Transport and Drying Line – Müller Martini 3520:
Emergency delivery with delivery conveyor to the right

Three Knife Trimmer – Müller Martini ZENITH S (3672):
Colour display with touchscreen
Right-hand infeed
Standard changeable cutting tables (no. 4–17)
Knife changing device
2 sets of knives (special equipment)

Book Counter Stacker – Müller Martini CB 16 (3631) :
Delivery belt to the right
Delivery belt to the left with roller conveyor

Technical Details :
Parameter Value
Binder – Max. Speed 15,000 cycles/h
Binder – Max. Format 360 × 310 × 60 mm
Binder – Min. Format 140 × 100 × 2 mm
Three Knife Trimmer – Max. Speed 7,000 cycles/h
Three Knife Trimmer – Uncut Max. 384 × 340 mm
Three Knife Trimmer – Uncut Min. 140 × 73 mm
Three Knife Trimmer – Cut Max. 304 × 310 mm
Three Knife Trimmer – Cut Min. 136 × 100 mm
Three Knife Trimmer – Book Thickness 2–70 mm
Stacker – Max. Speed 18,000 cycles/h
Stacker – Max. Format 450 × 340 × 70 mm
Stacker – Min. Format 140 × 100 × 3 mm
