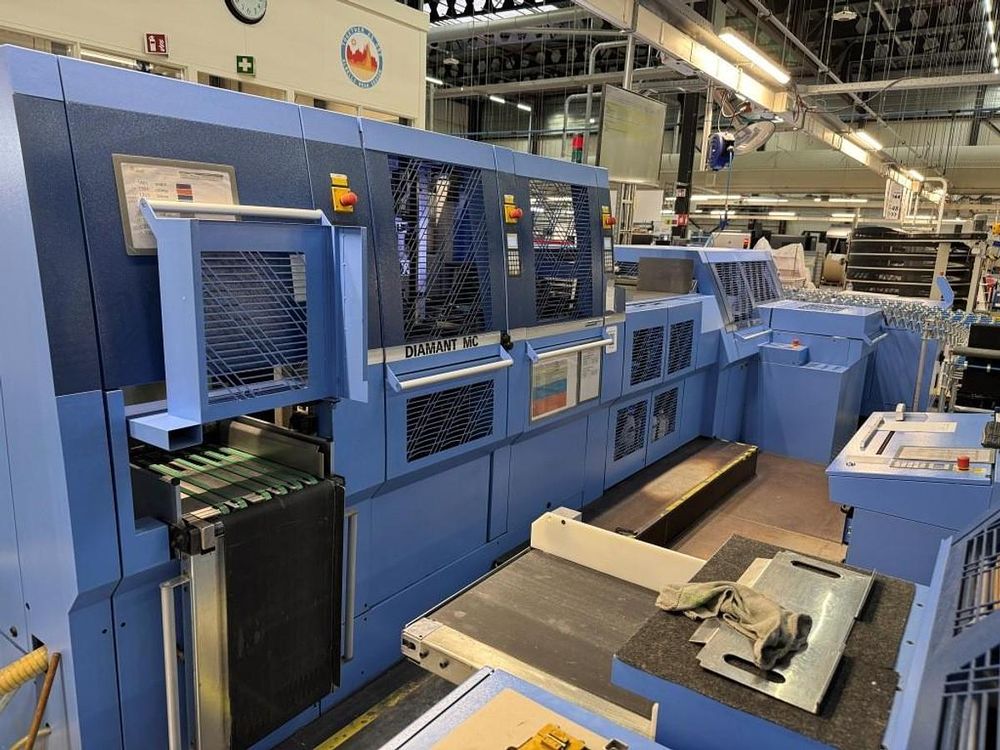

MULLER MARTINI DIAMANT MC 35 DIGITAL

Book Production Line
Perfectly bound photo books, where each book block is reliably placed in the correct book cover
despite high production speeds – that’s what the Diamant MC Digital delivers.
It ensures efficient production of digitally printed photo books or true photo books with layflat binding.

Overview:
DIAMANT MC 35 Digital book production line
EP340/L forming and pressing machine

Configuration:
DIAMANT MC 35 Digital book produktion line - for flat spine
AMRYS automatic adjustment system
commander with touchscreen monitor
bookblock infeed with reject (barcode check)
starwheel feeder
cold glue gluing station with pump
hotmelt nozzle gluing system for joint-gluing with ROBATECH premelter
case prestacking conveyor
case magazine
case transport system with reject (barcode check)
casing-in machine
delivery to the left with tiltable conveyor

EP340/L forming and pressing machine
AMRYS automatic adjustment system
servo-controlled press for spine forming
straight infeed
delivery to the left with delivery conveyor

Technical specifications:
mechanical speed: up to 35 cycles/min
size range book block max.: 380 x 270 x 80 mm
size range book block min.: 100 x 100 x 4 mm
size range book case open max.: 390 x 670 x 5 mm
size range book case open min.: 105 x 156 x 1 mm
