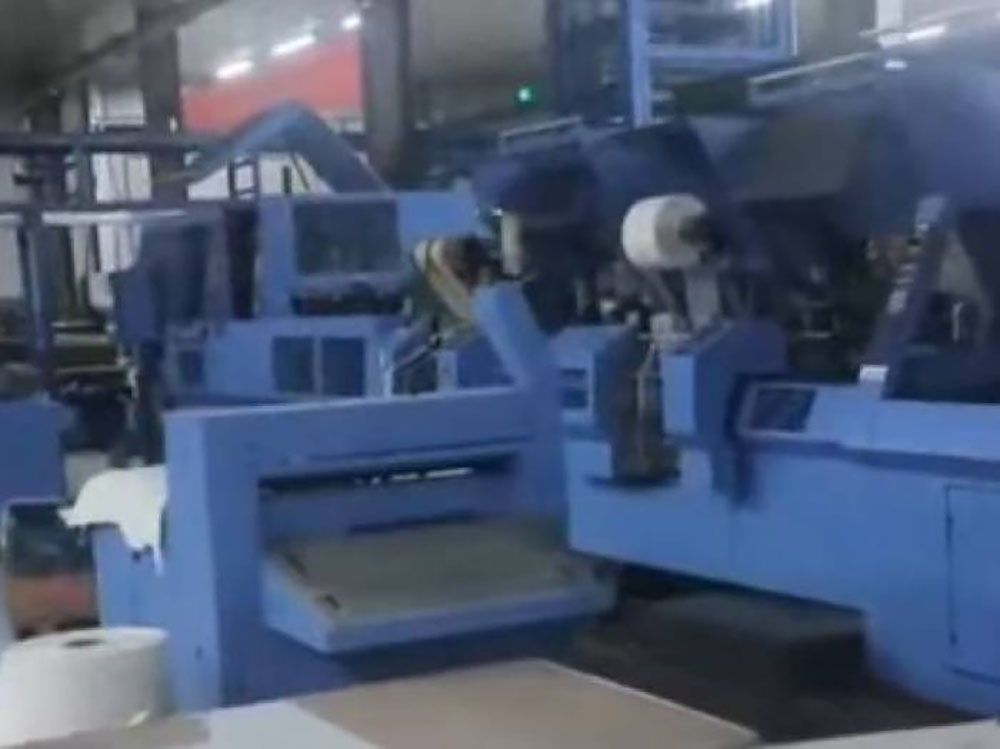

MULLER MARTINI Diamant MC 60 With Granit

Hardcover book production line with Online Trimmer
The in-line system with the Diamant Bookline guarantees a high level of efficiency, even in the case of small runs
With the Diamant Bookline the book manufacturer can produce standard hardcover books, as well as books with integral, full-flap or even plastic covers – all at top quality.

Bookline RHE 622
Block position control (back / front section)
preheater
Angle roller table WR 630
Round station
press station for twofold pressing
1Bandgluing station for hotmelt for ribbon and gauze
gauzing station
2Bandgluing station for hotmelt for head band station
head band Station
press Station
Automatic casing-in unit
Automatic cleaning station for PVA glue unit
Thin book rubber
Head splitter for thin paper
head band supply control
Doublecase control in the casing-in unit
ribbon gluing device
MM Remote Access Installation
RHE622E tandem
Additional HMI operator panel on the rear of the machine

Pressing machine EP 680
Servo unit input electric wave to RHE
Fully automated with Amrys system
Fine adjustment via remote HMI Panel
control about Commander
continuous joint forming and pressing process with a long press time, about 6 sec at full production capacity
Double current charging import
Rotor with 4 dual-Press jaw pairs
Temperature-controlled joint forming device with 1 set of standard joint-forming
delivery to the right
various conveyor belts

Technical Specification:
speed: 60 cycles / min or 3.600 cycles / hour
book block width min/max: 70 mm / 300 mm
book block length min/max: 100 mm / 380 mm
book block thickness min/max: 2 mm / 80 mm
Machine has Online Muller Martini Granit 3676 trimmer included in configuration
