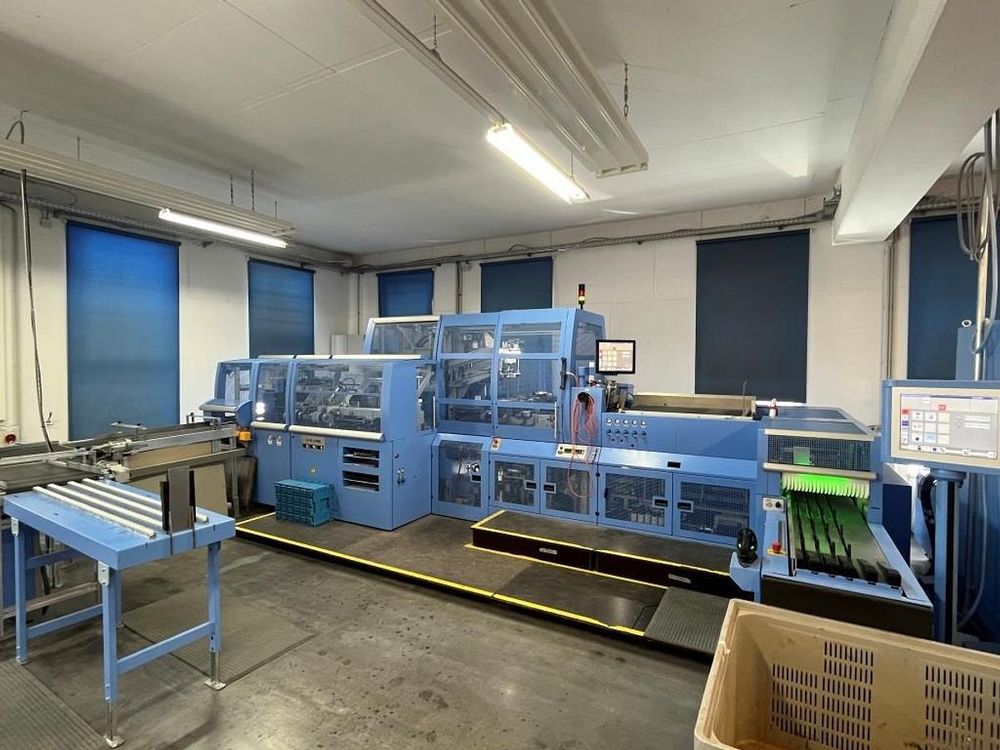

MULLER MARTINI EMP 513

Type K317
For casing-in of flat spine book blocks into hard covers, as well as subsequent pressing and joint-forming of books.
To be used as an individual machine.

Configuration:
copilot system with 2 touch screens
block supply via feeding conveyor and star feeder
case prestacking conveyor
case magazine
case bending machine
case forming station
casing-in gluing station with profile rollers and adjustable double glue application
for the book joint area
glue circulation system with pump
EMP glue pump monitoring unit
rubbing down unit and thin book device
electronically heated 15° joint forming rails, controlled in pairs via regulator
quick-change system for joint forming rails
2 pressing stations
heater monitoring unit
servo-controlled drive technology based on Siemens SIMOTION D
delivery to the left, transport of books lying flat

Special equipment:
photo book block splitter
hotmelt nozzle gluing unit for joint gluing
NORDSON premelter
Code-Matching (comparison) between book block and case via data matrix code,
barcode sensor: Cognex camera
double case control
special equipment for the processing of flexible cases

Technical specifications:
mechanical speed: up to 30 cycles/min
size range book block max.: 280 x 375 x 80 mm
size range book block max.: 305 x 375 x 30 mm
size range book block min.: 100 x 100 x 2 mm
size range opened case max.: 660 x 385 mm
size range opened case min.: 210 x 105 mm
thickness opened case max.: 7,0 mm
thickness opened case min.: 0,1 mm
size range finished book max.: 285 x 385 x 90 mm
size range finished book max.: 315 x 385 x 30 mm
size range finished book min.: 105 x 105 x 6 mm

KOLBUS Transport Conveyor System
year 2021
