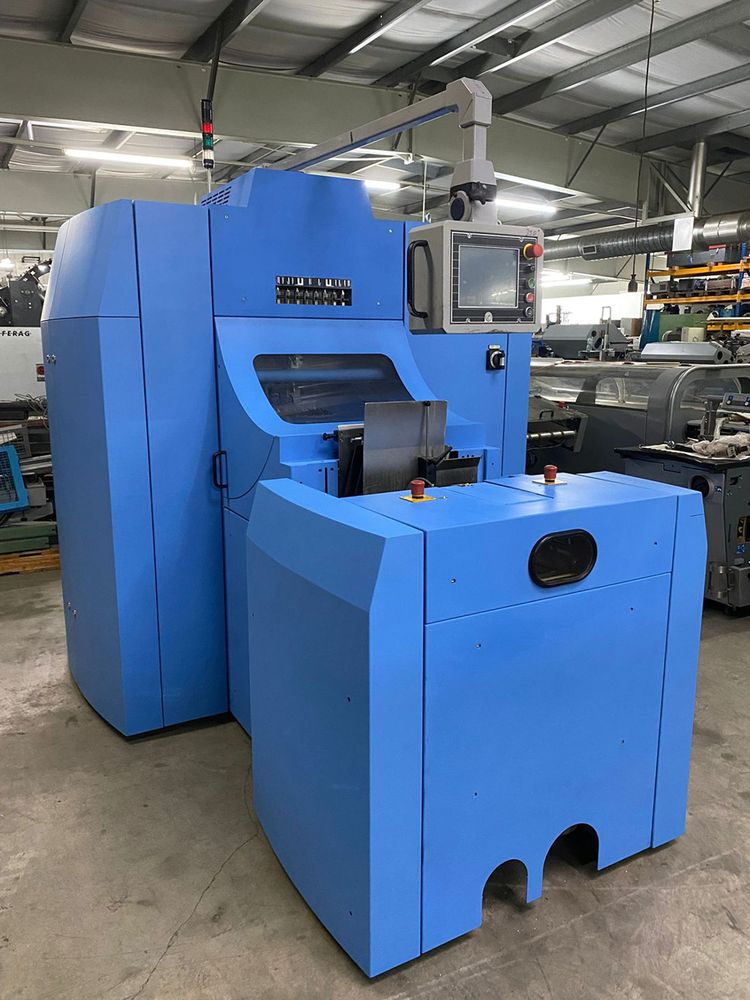

MULLER MARTINI Orbit

Three knife trimmer automatic with integrated pre stacker
- Colour monitor with touchscreen
- Infeed conveyor
- Right hand infeed
- Automatic hopper feeder for inline production
- Exchangeable cutting tables (standard set)
- Knife pre-setting device
- Set of knife holders: 2

Mechanical speed 1,000 to 7,200 cycles/hr
Sizes untrimmed Standar Size Maximum 384 x 320mm (15 1/16" x 12 5/8")
(Spine length x booI‹ width) :
Minimum 140 x 72mm (5 1/2" x 2 13/16")
Large size Maximum 445 x 320mm (17 1/2" x 12 5/8")
Small size Minimum 110 x 72mm (4 5/16" x 2 13/16")

Sizes trimmed:
Standar Size Maximum 304 x 303mm (12" x 11 7/8")
(Spine length x book width) Minimum 136 x 70mm (5 5/16" x 2 3/4")
Large size Maximum 434 x 303mm (17 1/16" x 11 7/8")
Small size Minimum 100 x 70mm (3 7/8" x 2 3/4")

Book thickness :
Maximum 80mm (3 1/8")
Minimum 2mm (1/16")Trim Front :
Maximum 40mm (1 5/8")
Minimum 2mm (1/16")

Head/Food :
Maximum 40mm (1 5/8")
Minimum 2mm ('/.")

Power consumption 20 kVA
Compzossed air connection 40 Nm*/h at 6 bar
Exhaust 2100 Nm’/h at v = 25 mls
Wei ht 5500 (12 125 bs )
