MULLER MARTINI Pantera AMRYS

Equipment:
Gathering Machine
Model: MM 3692
Year: 2017
12 Stations (4 flat-pile feeders per element)
Hand Feeding Station (for A4 landscape)
Automatic Signature Recognition Cameras: ASIR 3 (Image and barcode)
Automatic Signature Thickness Control: ASAC
Additional Features: Residual pile monitoring, height-adjustable signature tables
Controls: Touchscreen, rotatable local control panel, hand feeding from left and right
Reject Gate Delivery for faulty, double-sheet, and ASIR-error book blocks
Transfer to Binder: Stand-up element 1589, L = 1,552 mm

Perfect Binder

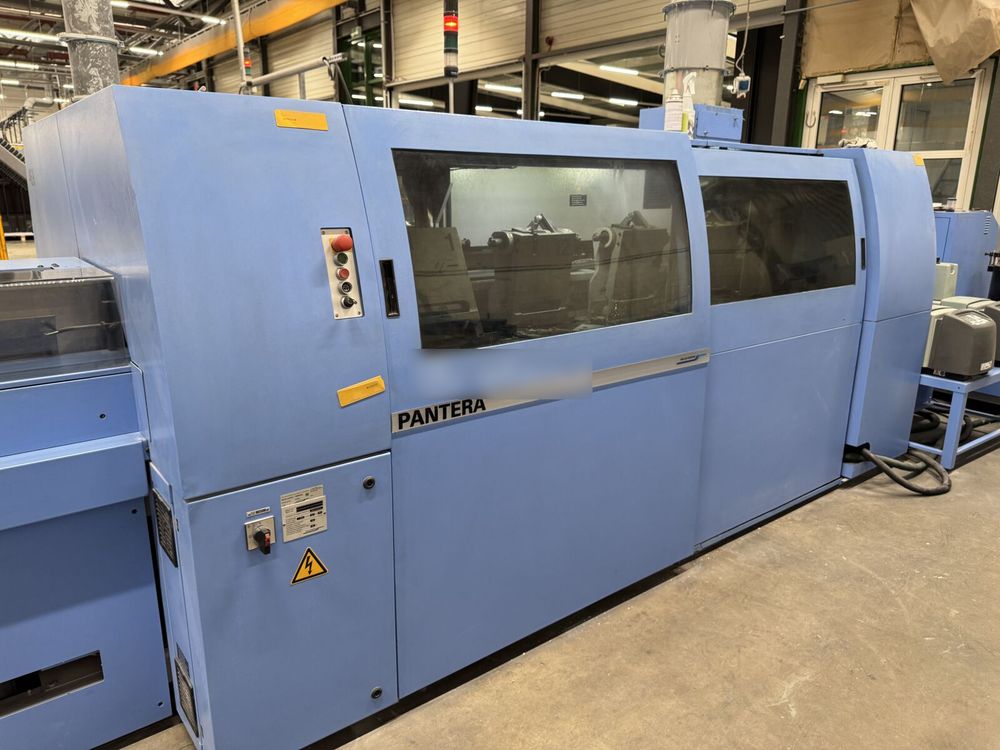

Model: MM Pantera 1577 AMRYS
Year: 2017
Infeed: Coupled to ZTM 3692 via separator element with book height control, AMRYS channel opening, manual feeding option
12 Clamps: precision-guided, automatically adjustable with quick-opening mechanism
Clamp Opening Range: 17 mm – 62 mm (outfeed side), AMRYS adjustable clamp opening time

Milling / Spine Preparation:
Main milling station with safety brake, 12-blade dust milling cutter, AMRYS book thickness adjustment
Fibre Rougher with torque wrench
Notching unit with 2 notching blades
Ring brush (steel, 0.2 mm wire)
Spine processing station (reception module for all RLW)

Dust Extraction: Included – cyclone system with pipes, connectors, and 16 dust bags (designed for long distances)
Gluing Slots: 1 slot for spine gluing and 1 for side gluing
PUR Nozzle Spine Gluing Unit: VPN6, precision application for thin glue film, volumetric system control
Hotmelt Spine Gluing Unit: unit with programmable pneumatic doctor blade system, counter-rotating heated spinner roller, automatic temperature and level monitoring
Hotmelt Side Gluing Unit: with programmable pneumatic glue rollers, exchangeable glue discs (3 mm), AMRYS book thickness adjustment, automatic temperature and level monitoring, mobile
Pressing: Press station with one set of press plates, AMRYS book thickness adjustment
Cover Feeding: Drum cover feeder with vacuum pump, vibrator, AMRYS magazine stops, 4-fold scoring unit (Rillierwerk) with guide plates,
cover press roller for exact cover-to-spine registration, touchscreen control; supports covers with flaps (front and back guide plates included)
Delivery: Lay-down device to the left (book title up), gentle handling for Hotmelt and PUR products; outfeed with angled book outfeed channel and AMRYS channel opening
Controls: Commander control with 10.5" touchscreen, menu-guided setup, AMRYS, setup assistant, database for repeat jobs,
automatic glue length control (spine and side), central glue pot temperature and level monitoring,
7-day multi-shift glue pot programming, production data display, error message display, wireless remote control
Power Supply: 3 × 400 V / ±5 %, 50/60 Hz ±2 %, PE

Premelters
PUR Premelter: MOD35, freestanding, melting on demand, heated supply hose, for PUR spine glue nozzle VPN6
Hotmelt Premelter (×2): 5 liters each, freestanding, heated supply hoses with level monitoring, base frame for 1 or 2 premelters with electrical connections

Three Knife Trimmer
Model: MM Granit 3676
Year: 2017
Infeed: Belt from right, L = 2,405 mm
Drive: Individual drives for infeed, press, cutting unit with centering and book transport
Format Adjustment: Motorized (magazine and cutting station) with fine adjustment
Press Force: Servo-regulated, adjustable during operation
Cutting Cassettes: 8 included (standard format range 142–311 mm trimmed), cabinet for max. 14 cassettes
Knife Sets: 2× carbide "Longlife" cutting edges, knife adjustment device
Additional Features: Silicone spray device, cut only with product, centralized lubrication with interval control
Controls: Integrated control cabinet, touchscreen with USB memory

Stacker
Model: MM Uno Stacker
Year: 2017
Type: Cross-layer stacker
Infeed: Belt with upper belt, infeed height 750–950 mm
Flap Opening: Pneumatic
Drive: Frequency-controlled AC, 2.2 kW
Format Settings: SIKO counter
Delivery: Roller table to the right or left
Controls: Swiveling control panel with PLC and 2-line display

Book Data Center (BDC)
Automatic measurement of length, width, and thickness of sheet, book block, and cover (trimmed and untrimmed)
Mounted on trolley, touchscreen operation

Drying / Cooling Conveyor
Layout: Multi-section with 180° and 90° link chains (left-turning), linear belts, and emergency delivery
Sections:
180° link chain, width 4,350 mm (legs: infeed 1,200 / outfeed 1,500 mm)
Linear belt, L = 6,000 mm
90° link chain (legs: infeed 2,450 / outfeed 1,500 mm)
Linear belt, L = 4,800 mm
90° link chain (legs: infeed 1,200 / outfeed 1,500 mm)
1,200 mm linear belt with emergency delivery flap
Emergency delivery belt (transverse), L = 1,800 mm with dust plate
Controls: Freestanding touchscreen for operation and control

Services & Remote Support

RemoteLine Basic hardware package (T1) for remote diagnostics and troubleshooting

Technical Details
Parameter Value
Maximum Speed 4,000 cycles/hour
Spine Length (E) 120–380 mm / 4.7–15.0 in
Book Width (B) 100–320 mm / 3.9–12.6 in
Book Thickness (C) 2–50 mm / 0.08–2.0 in
Cover Length (A) 120–390 mm / 4.7–15.4 in
Cover Width (D) 202–640 mm / 8.0–25.2 in
Cutting Cassette Format Range 142–311 mm / 5.6–12.2 in (trimmed)
Counter Reading approx. 7,800,000 books
Number of Clamps 12
Clamp Opening Range 17–62 mm / 0.7–2.4 in
Milling Depth 0–4 mm / 0–0.16 in
Content Paper Weight 60–170 g/m²
Cover Paper Weight 80–350 g/m²
Glue Types PUR (spine), Hotmelt (spine + side)
Power Supply 3 × 400 V / ±5%, 50/60 Hz ±2%, PE
