MULLER MARTINI PANTERA

Perfect Binding Line
Overview:
1571 gathering machine (year 2000)
1577.0400 PANTERA perfect binder (year 2008)
MULLER MARTINI / KOLBUS / WOHLENBERG transport and drying line
WOHLENBERG 44 FS 50 three knife trimmer (year approx. 1991)


Configuration:
1571 gathering machine (year 2000)
handfeeding
12 stations
automatic signature thickness control ASAC
set-up element
transfer to the binder

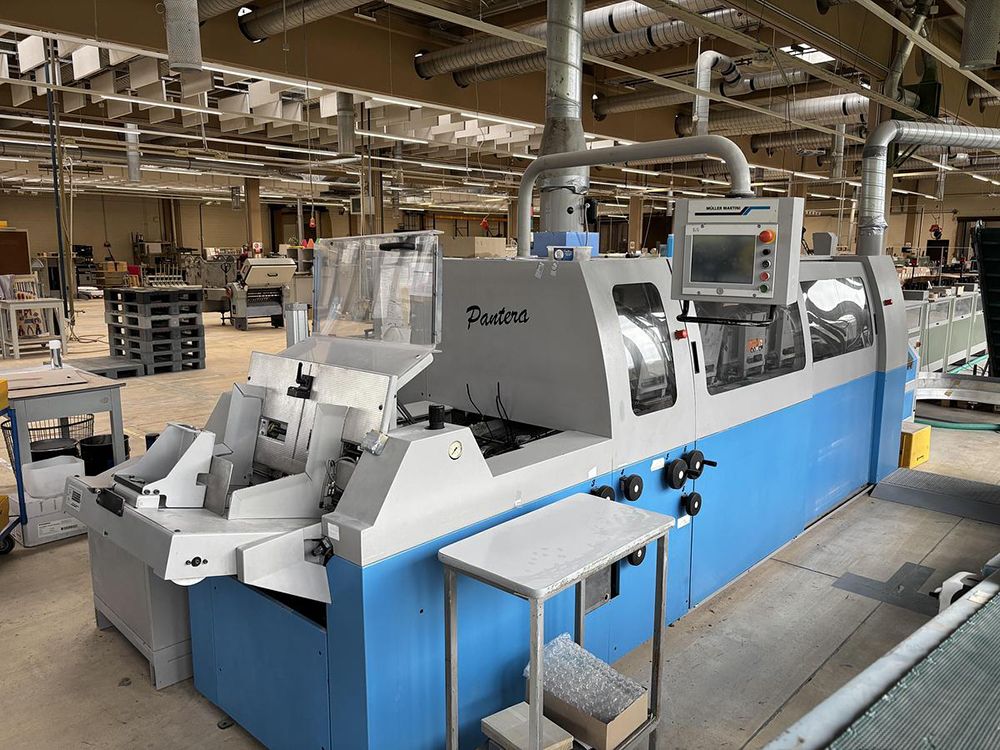

1577.0400 PANTERA perfect binder (year 2008)
colour monitor with touch screen
handfeeding
12 clamps
milling and roughening station
dust exhauster with sacking unit (without extraction pipes)
PUR spine gluing unit
PUR block premelter MOD 30 POT (year 2007)
hotmelt side gluing unit
NORDSON DURABLUE 4 premelter
gauzing station
drum cover feeder
scoring station
pressing station
lay down device

Technical specifications:
mechanical speed: up to 4.000 cycles/h
size range max.: 380 x 320 x 50 mm
size range min.: 120 x 100 x 2 mm

MULLER MARTINI / KOLBUS / WOHLENBERG transport and drying line
length: approx. 20 meters
incl. emergency delivery

WOHLENBERG 44 FS 50 three knife trimmer (year approx. 1991)
right hand infeed with integrated counter stacker
cutting cassettes
knife-changing device
delivery with extended conveyor belt

Special equipment:
TRIO-TECHNIK waste removal conveyor

Technical specifications:
mechanical speed: up to 3.000 cycles/h
size range uncutted max.: 310 x 410 mm
size range cutted max.: 300 x 380 mm
size range cutted min.: 100 x 145 mm
