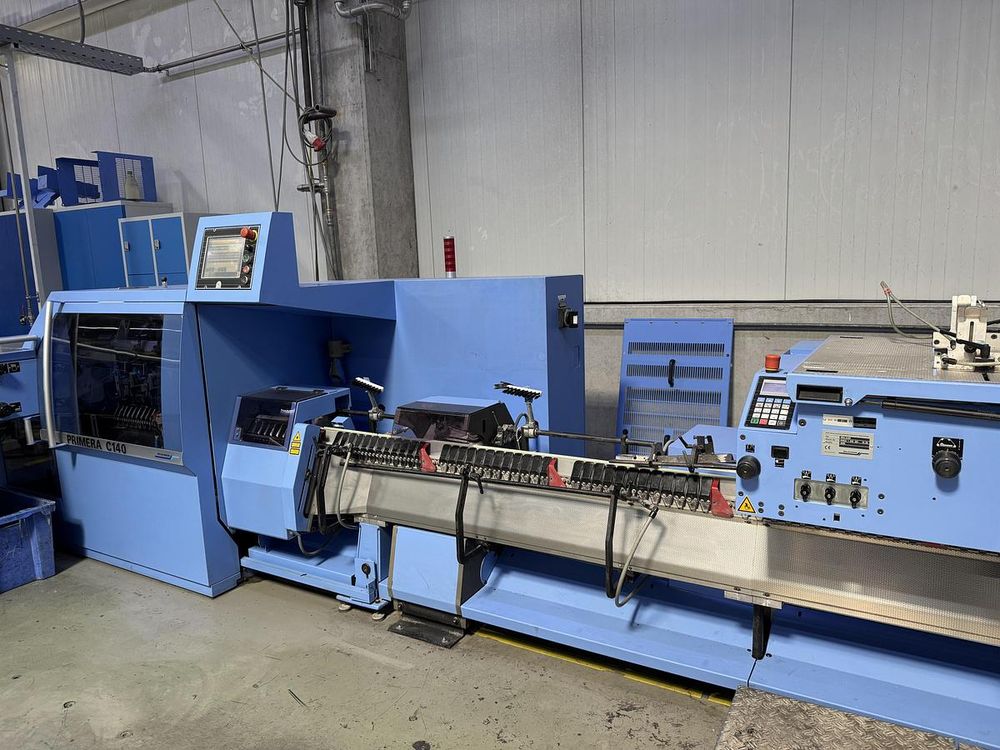

MULLER MARTINI PRIMERA C140 Saddle stitcher

The PRIMERA 140 from MULLER MARTINI is a high-powered, highly efficient saddle stitcher for medium-capacity performance.

Configuration:
colour monitor with touch screen
8 feeders horizontal type 0379.0401 with ASIR 3
card gluer type 0423.0425 with ROBATECH premelter (year 2010)
cover feeder type 0554.0405 with ASIR 3 (large format)
SEMKO
stitching unit
2 stitching heads
trimmer type 0459.0401
compensating stacker PERFETTO type 0450.0401 with belt delivery to the right and delivery to the left
static blocker type 0457.0400 (year 2008)
prepared for connection to a central compressed air system

Technical specifications:
mechanical speed: up to 14.000 cycles/h
size range untrimmed (high folio lap) max.: 480 x 320 mm
size range untrimmed (high folio lap) min.: 90 x 80 mm
size range untrimmed (low folio lap) max.: 480 x 290 mm
size range untrimmed (low folio lap) min.: 90 x 80 mm
size range untrimmed (lap) max.: 18 mm
size range untrimmed (lap) min.: 6 mm
product thickness max.: 13 mm
