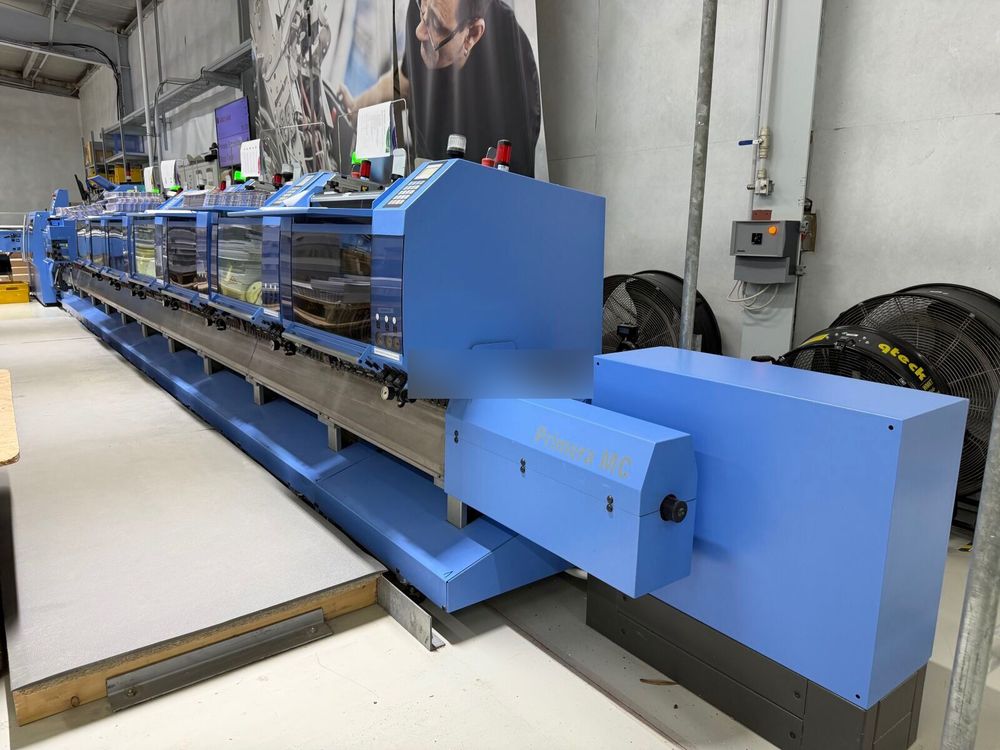

MULLER MARTINI Primera MC Saddle Stitcher

Equipment :
Saddle Stitcher – Primera MC (0384)
Automatic chain adjustment
Automatic thickness measurement at the apex (First)
Sheet measuring device

8x Flat Pile Feeders 0505 (6 units 2017, 2 units 2018)
Tiltable
Small format stops and large format guides integrated
Each feeder equipped with ASIR 3 automatic signature recognition (barcode reading or image recognition)

Cover Feeder 0507
All settings (e.g. press rollers, tapes, suction point) adjustable during production
ASIR 3 automatic signature recognition (barcode reading or image recognition)
CASAC double sheet detection

Stitching Section
2× HK 75Q Quick-Setup stitching heads
2× Wire spool unwinders for 45 kg spools

Three-Knife Trimmer 0408
Automatic infeed adjustment
Automatic format and thickness adjustment
Dynamic backstop control with own drive
Large and small format integrated
Pneumatic knife clamping for head/foot section
Knife sets with carbide cutting edges (2 sets)
Center cut device with set of 6 mm punch knives (1× 6 mm punch knife, 2× lower knives) for double-up production

Cross Stacker – Perfetto
For stack height up to max. 250 mm
Control panel with MMAP control
Infeed band S, H = 700 – 900 mm
Mobile understructure for Perfetto, H = 250 mm
Turntable with Amrys equipment, motorised height-adjustable pre-stack tray
Add-on parts for double-up production
Air table for manual takeoff and connection to band delivery
Left band delivery

Connectivity:
2× Compressors KDT 3.140 for 1.5 bar

Technical Details :
Parameter Value
Maximum mechanical speed 14,000 cycles/hour
Maximum signature size (untrimmed) 320 × 480 mm / 12 5/8" × 18 7/8"
Minimum signature size (untrimmed) 115 × 153 mm / 4 1/2" × 6"
Maximum product thickness at spine 12 mm / 0.47" (with HK 75Q heads, 12 mm staples)
Feeder stations 9 (6× flat pile 0505 + 2× vertical pile 0511 + 1× cover feeder 0507)
Staple length 12 mm
Wire spool capacity 45 kg
Three-knife trimmer 0408 (with double-up center cut, 6 mm punch)
Cross stacker max. stack height 250 mm
Cross stacker infeed band height 700 – 900 mm
Production mode Single-up and double-up
Quality control : ASIR 3 (barcode / image recognition) on all feeders, CASAC double sheet detection on cover feeder,
Semko sideways thickness measurement (right/rear), apex thickness measurement (FIRST), staple control, oblique sheet control, cut control
Compressor pressure 1.5 bar
Electricity (DVT 3.100) 3× 200–460 V, 50–60 Hz
Electricity (KVT 3.100, KVT 3.140) 3× 200–460 V, 50–60 Hz
Electricity (KDT 3.100, KDT 3.140, DTLF 250 K) 3× 380–460 V, 50–60 Hz
