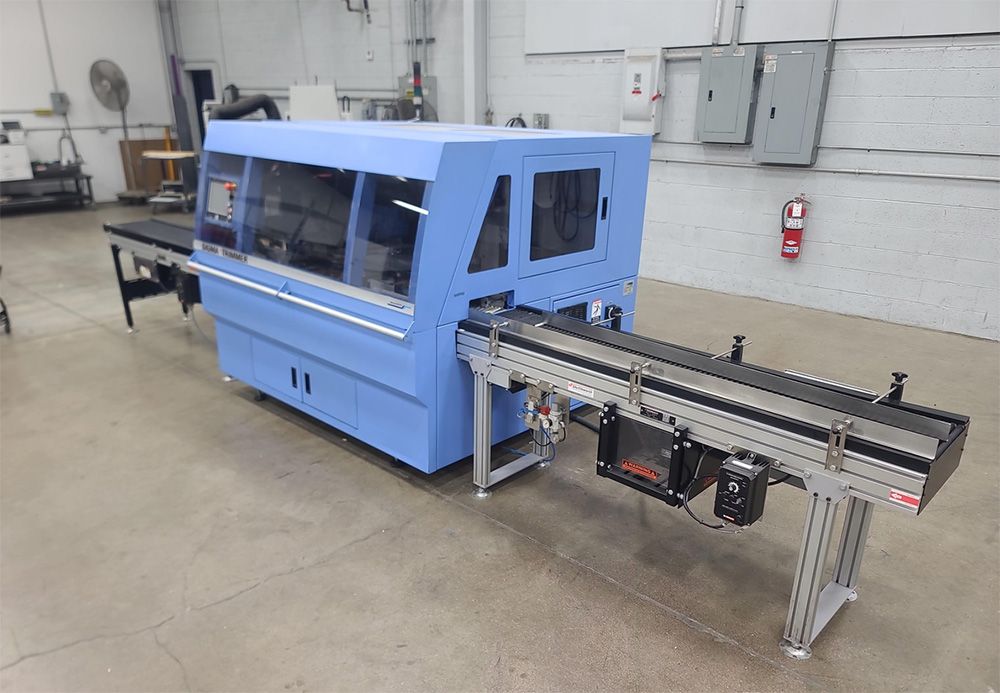

MULLER MARTINI Sigma

Automatic Three Knife Trimmer w/ Delivery Conveyor
Features:
Automatic three-knife trimming of head, face, and foot
Rotary transport carousel for continuous book handling
Integrated touchscreen HMI with emergency stop and operator controls
Fully enclosed safety guarding with interlocked access doors
Pneumatic clamp pressure adjustment with integrated pressure gauge
Powered Shuttleworth Express Delivery Conveyor with adjustable speed control and side guides

Applications:
Perfect bound book finishing
Magazine and catalog trimming
Manual and softcover book production
Commercial print and bindery operations
Short-run and high-volume book manufacturing

Specifications:
Control System: Touchscreen operator interface
Book Transport: Rotary carousel system
Safety Features: Enclosed guarding, interlocked access doors, emergency stop, safety light curtain
Included Conveyor: Shuttleworth Express powered Delivery Conveyor with adjustable guides and variable speed control
Maximum Speed: Up to 1,000 cycles/hour
Maximum Untrimmed Book Size: 320 x 240 mm
Minimum Untrimmed Book Size: 154 x 108 mm
Book Thickness Range: 2-40 mm
Maximum Front Trim: 86 mm
Front Trim Range: 3-86 mm
Foot Trim Range: 3-75 mm
Power Requirement: 400 V, 3 Phase, 60 Hz, 29 A
