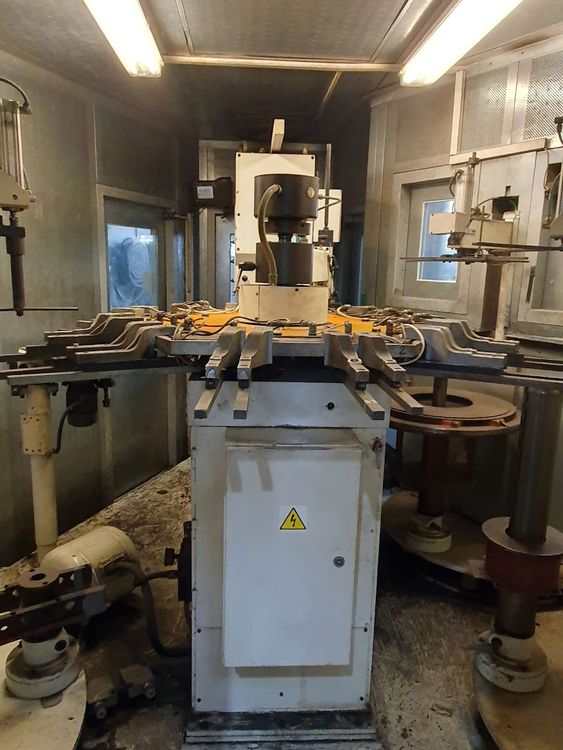

Muller NKA 8 8 t high-speed notch punching press
Ref :
2799565-3-GO
Condition :
Used
Manufacturer :
Muller
Model :
NKA 8
Pressure :
8 t
Type :
high-speed notch punching press
Year(s) :
1991
Quantity :
1
Location :
Seller or machines location:
EUROPE (Central and Eastern)
EUROPE (Central and Eastern)
Year: 1991
Rated deformation force press 8 t
Max. plate thickness 1,5 mm
Number of ram strokes 400-1300 /min
Ram stroke 20 mm
Ram adjustment 20 mm
Machine weight 900 kg

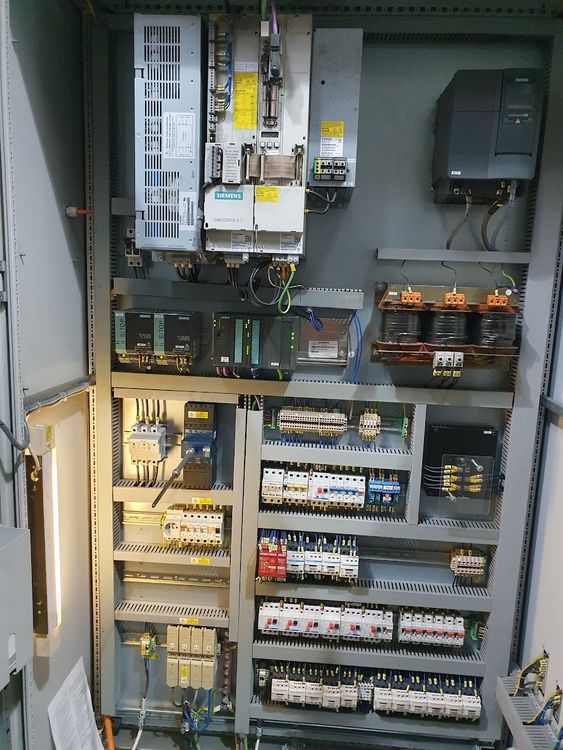

Control system Siemens
The machine is in good technical condition, with the possibility of testing under power.

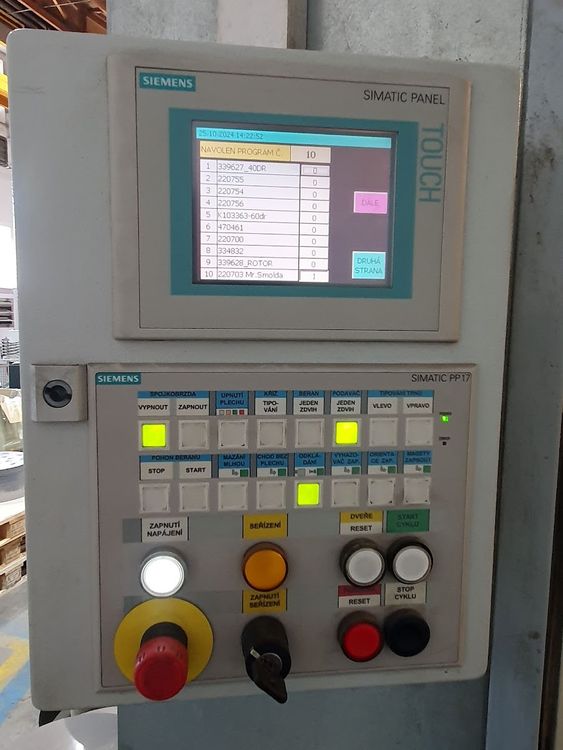

A Siemens Simatic PP17 control system was installed in 2010.

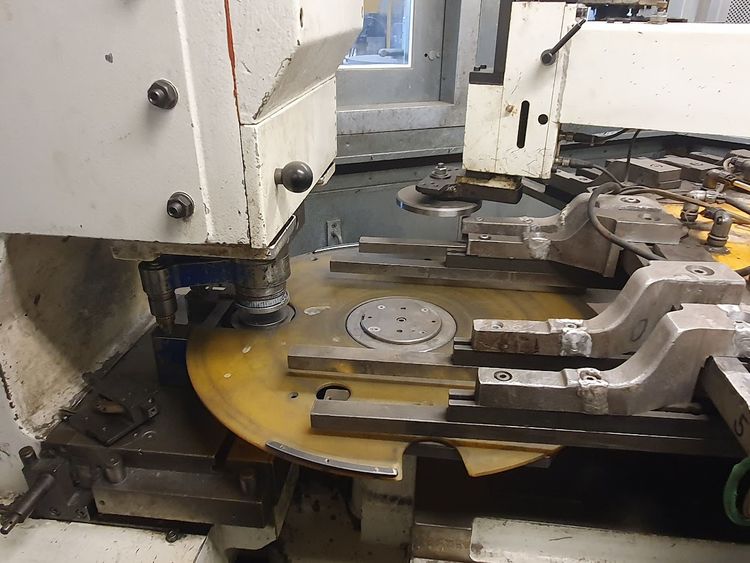

The Müller Weingarten NKA 8 is a highly specialized, high-speed notch punching press. This type of machinery is primarily used in the electrical engineering industry for the precision punching (notching) of stator and rotor laminations for electric motors and generators.
