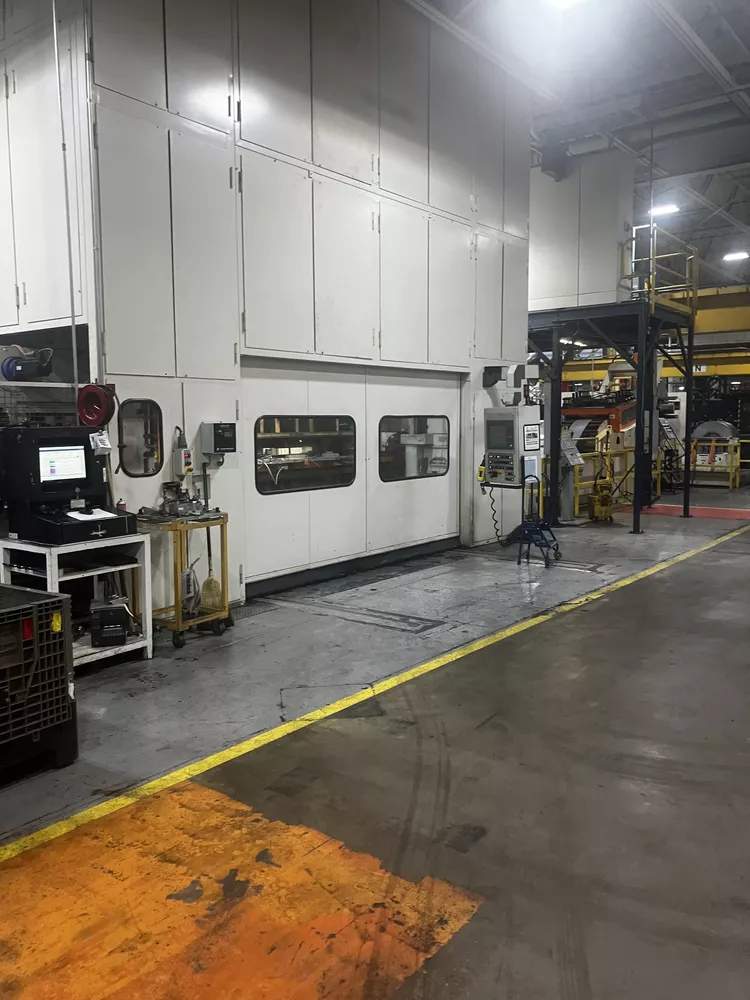

Muller, Weingarten 630.36 700

Muller Weingarten 630.36
YEAR: 2006


Tonnage: 700
Strokes Per Min: 8-60
Stroke: 15.75"
Slide Adjustment: 9.8
SPM: F-B 55" x L-R 142"
Bolster Size: F-B 55" x L-R 142"
Ram size: F-B 55" x L-R 142"
Max Upper Die Weight: 13,240 lbs
Shut Height: 35.4"
Feed Direction: R-L
Press Window: 37" x 67.5" (W x H)
Feeder Type: Roll
Coil Cradle or Reel: Reel
Coil Size ID x OD: 24 x 72
Coil Reel Size Min x Max (in.): 19 x 20
Coil Weight Max. Lbs: 45,000
Coil Width Max.: 36
Feed Pitch Max.: 12
Approximate Machine Weight: 308,647 lbs
