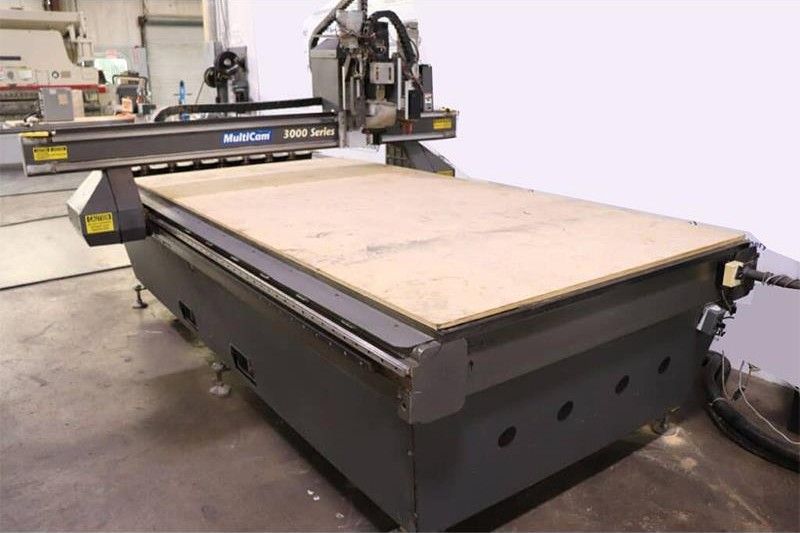

Multicam 3000 Series

3-204-R, 5' X 10' TABLE WITH ATC SPINDLE AND BORING BLOCK
Includes packing/loading onto to a supplied truck.
60" x 120" Fixed table, moving gantry machine in a front-to-back configuration with ATC, boring and multi-zone vacuum table.

Equipped with:
● 10 HP "HSK" automatic tool change spindle, variable speed by inverter up to 24,000 RPM.
● 8 position tool rack
● 4 spindle drill block in long axis direction
● Full table coverage on X- & Y-axis
● Rack & pinion gantry drive with brushless Servo motors using integrated 25 mm linear roller bearing rack system
● 8" Z-axis travel via lead screw drive.
● 1,000 IPM Max. cutting feed, 1,700 IPM max. rapid traverse rate on X- & Y-axis.

Control:
● MULTICAM CNC controller Is a stand-alone RISC/DSP system.
● Controller includes a keypad interface with hot keys for repetitious functions and DNC access to host computer.
● Memory for instant job replay, 32-bit processor, 12 MB RAM & 2 MB flash memory, interprets HPGL and M & G codes.
● RS-232 interface for PC communication.

Includes:
● Assorted collets and tool-holders"
