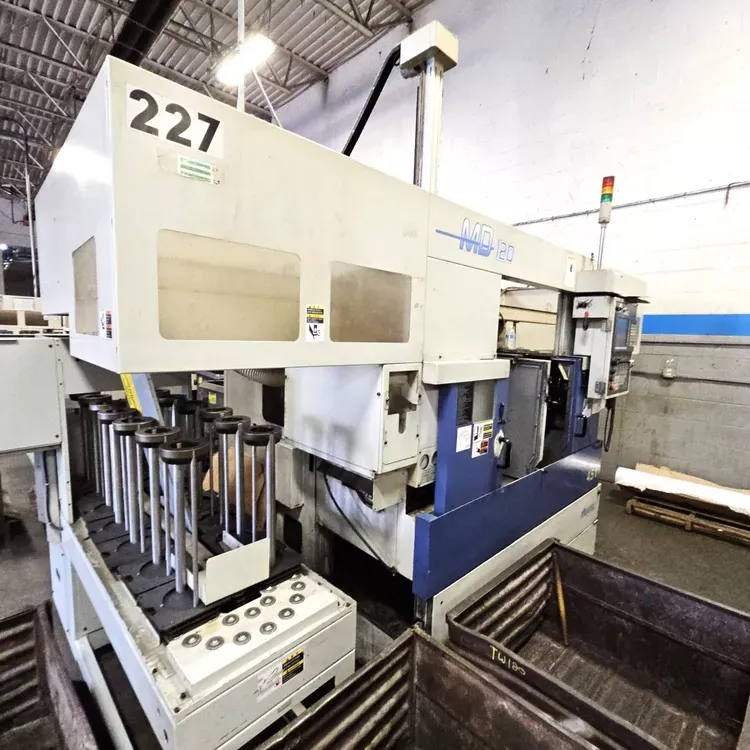

Muratec Fanuc 31iT CNC control 4500 RPM MD120G 4 Axis

Distance between spindles: 13.39 in
Max swing: 11.61 in
Standard chuck size: 8 in
Nominal turning diameter: 4.72 in
Max turning diameter: 9.44 in
Nominal turning length: 3.15 in
Max turning length: 3.94 in
Turret stations: 8
X-axis stroke: 5.12 in
X-axis rapid traverse: 945 IPM / 78.78 FPM
Z-axis stroke: 5.71 in
Z-axis rapid traverse: 945 IPM / 78.78 FPM
C-axis: Full contouring milling and drilling
Spindle speed range: 45 – 4500 RPM
Spindle nose: A2-5
Spindle bore: 1.85 in
Spindle drive motor: 15 HP
Tool shank size (square): 0.75 in
Tool shank size (round): 1.57 in
Approximate machine weight (with loader): 11,800 lb
Floor space: 139.37 in × 136.22 in

Loader Specifications
X-axis stroke: L7.87 in / R63 in
X-axis max speed: 492 FPM
Y-axis stroke: 19.09 in
Y-axis max speed: 361 FPM
Z-axis stroke: 6.1 in
Z-axis max speed: 115 FPM
A-axis rotation: 180° / 0.6 sec per 180°
Gripper outer diameter: 3.54 in
Jaw stroke: 1.18 in
Max workpiece weight: 8 lb × 2

Features/Equipment
Fanuc 31iT CNC control
Twin spindle configuration
Twin turret system
Live tooling capability
Full C-axis milling and drilling
Overhead gantry loader
Muratec WF14L-160 14-pallet stocker feeder table
Re-chucking station
Coolant tank and pump
Rear chip conveyor (LNS Turbo magnetic discharge)
M-Code air blast and coolant blast through chuck
Part work location confirmation
Live and static toolholders included
Books and manuals included
Under power and available for inspection
