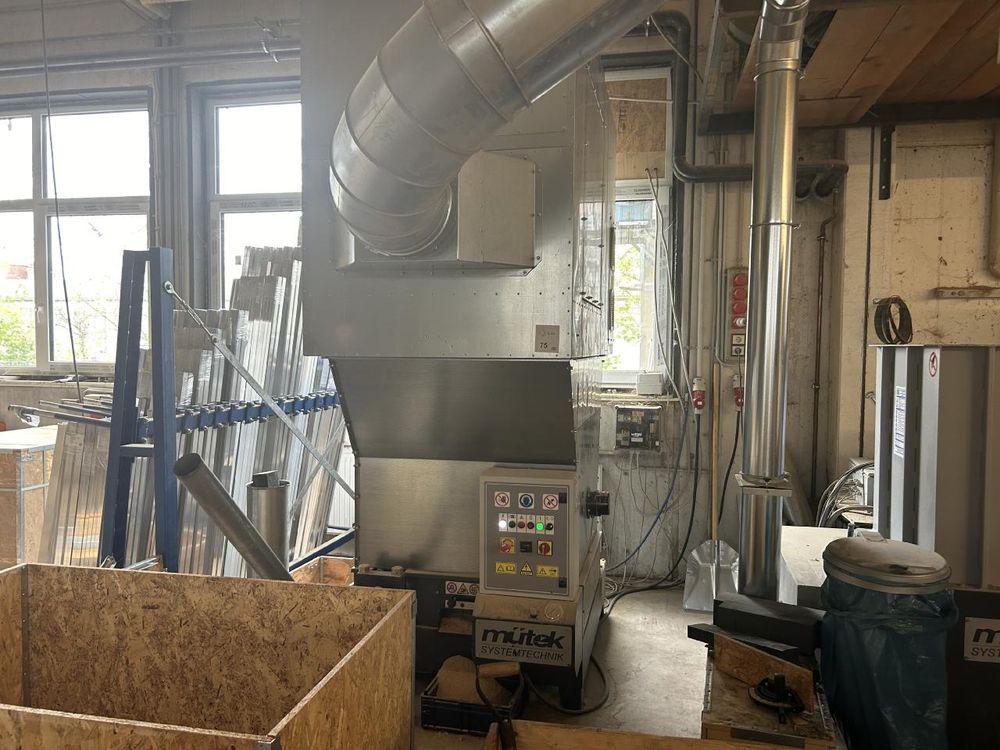

Mutek RL 350

Used machine
525 operating hours
Dust extractor
Extraction nozzle diameter 350 mm
Motor 11 kW, 400 V, 50 Hz
Maximum flow rate 8000 m³/h
Nominal flow rate at 20 m/sec: 6950 m³/h
Negative pressure at the total connection at 20 m/sec: 2630 Pa
Filters: 23 cartridge filters
Filter area 71 m³
H3 "GS dust-tested, residual dust content < 0.1 mg/m³
Pneumatic JET filter cleaning (compressed air supply provided by customer)
Compressed air connection 3/4 inch, connection pressure 7-12 bar at 50 NL/min
Operating pressure in the unit 6 bar
Extinguishing system with powder extinguisher, dry fire extinguisher 12 kg
Frequency converter
Weight approx. 865 kg

with MPP 60 briquetting press
Briquette diameter 50 mm
Throughput (depending on material) max. 60 kg/h
(based on a bulk density of 200 kg/m³)
Motor power 5.5 kW
Oil volume 110 l
Silo diameter 1000 mm
Silo capacity: approx. 0.7 m³
Pump 27 l
Hydraulic pre-compressor
with oil hydraulic cooling
with fill level monitoring
incl. special container for RL 350
Floor area approx. 2200 x 1100 x 3100 mm
