Mydata Automation MY12

Vintage : NOV 2005

Details
In Line Machine
Midas and Hydra Heads
Agilis Ready
T3 Table

Specifications ( See Details above for installed options )

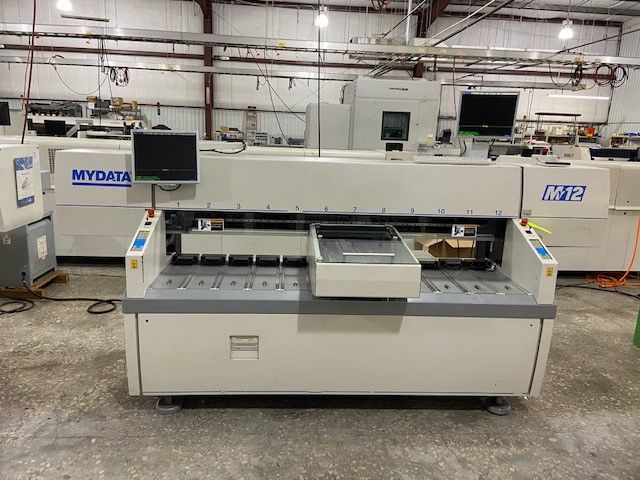

The Mydata MY12 is the ideal all-round placement machine.
With its high accuracy and 144 feeders, the machine performs both high-speed mounting
with the HYDRA Speedmount at 21,000 CPH and fine-pitch placement at 6,100 CPH with
the Linescan Vision System (LVS). In addition, the machine can place any type of
component ranging from QFP to chip scale BGA and CSP,
making it the perfect choice for flexible short series production.

The Mydata MY12 runs on the Linux-based TPSys system software.
It is a sophisticated real time control system with multi-user, multi-tasking,
and multi-product production features. It also includes a user access system
where databases and functions can be protected from non-authorized operators
and an Event log for easy access to management and quality data from production.

Mydata MY12 Technical Specifications:
Placement rate:
* Standard performance: 6,500 CPH (tact time 0.55).
* HYDRA Speedmount:: 21,000 CPH on chips (tact time 0.17 s).
* Linescan Vision System (LVS): 6,100 CPH on fine-pitch components (tact time 0.59 s).

Accuracy:
* Repeatability of 15 mm at 3 sigma.

Feeder capacity:
* 144 x 8 mm tapes or
* 135 SOIC tubes or
* 112 x 8 mm tapes and 32 JEDEC trays (with TEX).
