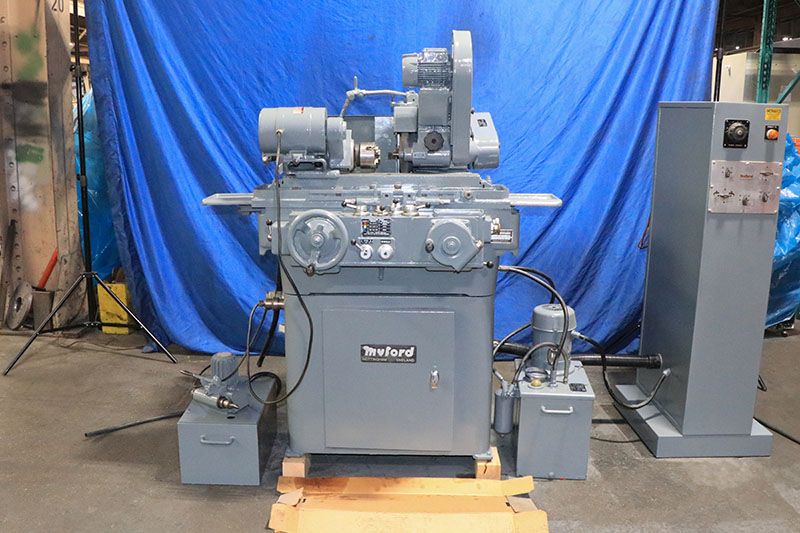

Myford MG12-HA Hydraulic Cylindrical Grinder (Swing Down I.D. Attachment)

Plain cylindrical grinder
Maximum grinding diameter: 3 in
Swing over table: 5 in
Maximum table travel: 13.75 in
Distance between centers: 12 in
Table swivel range: ±10 degrees
Table traverse hydraulic feed: 0–120 ipm
Dwell time range: 0–8 sec
Wheelhead total travel: 3.875 in
Hydraulic rapid retraction: 1.125 in
Infeed per handwheel revolution: 0.025 in
Wheelhead graduation (infeed): 0.0001 in
Fine feed dead stop resolution: 0.000025 in
Plunge infeed rate: 0.0025–0.125 in/min
Automatic infeed rate: 0.0001–0.001 in
Grinding wheel size: 12 x 1.5 x 5 in
Wheel spindle speed: 1830 / 1988 rpm (2 speeds)
Wheelhead motor power: 2 hp
Workhead speed: 100–900 rpm variable
Through draw tube capacity: 0.75 in
Collet capacity: 0.75 in
Workhead motor power: 0.25 hp
Approximate machine weight: 2000 lb
Hydraulic table traverse system
Variable dwell control
Hydraulic rapid wheel slide retraction
Automatic mechanical infeed system
Dual live and dead workhead spindle
External hydraulic pump and tank
Swing down I.D. grinding attachment
I.D. grinding spindle included
4-jaw chuck included
Face plate included
Collets included
Centers included
Coolant system included
Wired for 3/60/220 V electrical system
