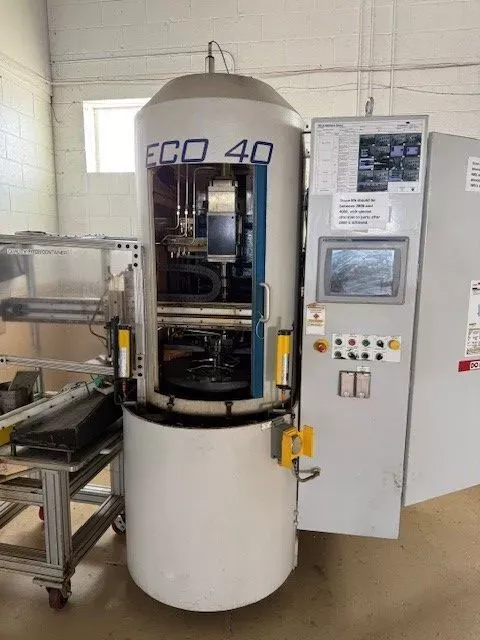

Nagel VS4-40

Vertical
CNC control
Pre-honing stock allowance: 0.003–0.005 mm
Pre-honing surface finish: Wt 0.6, RVk < 0.4
Pre-honing roundness: 0.010 mm max
Pre-honing straightness: 0.010 mm max
After honing surface finish: Rvk < 0.4 µm
After honing surface finish: Rpk < 0.2 µm
After honing surface finish: Ra 0.2 µm
After honing size: 43.599 / 43.587 mm
After honing roundness: 0.01 mm
After honing straightness: 0.01 mm
Honing time: 15 sec
Index time: 2 sec
Total cycle time: 17 sec
Power: 480 V, 3 phase, 60 Hz
Controls voltage: 24 V DC
Total load: 25 kW
Electrical system with AB ControlLogix PLC
Panel View 1000/1500 HMI
Multiple part program storage
Pneumatic system with Parker / Festo / Numatics components
Machine enclosure with electrically interlocked doors
AB servo controlled ECO 40 mechanical expansion precision spindles
Spindle motor power: 4.5 HP
Max spindle speed: 1700 rpm
Post-process gauging
Tool wear compensation
AB servo controlled spindle stroking system ECO 40
Adjustable oscillation amplitude via HMI
Adjustable oscillation frequency via HMI
Spindle drive power: 2.7 HP
Oscillation speed: 30 m/min
Stroke: 400 mm
Hydraulic tool expansion system
Hydraulic system with Daikin hydraulic power pack
AB servo controlled 2 position rotary index table
Bijur / Vogel centralized lubrication system
Lubrication storage capacity: 200 hours
Low reservoir level monitoring
Dirty filter monitoring
