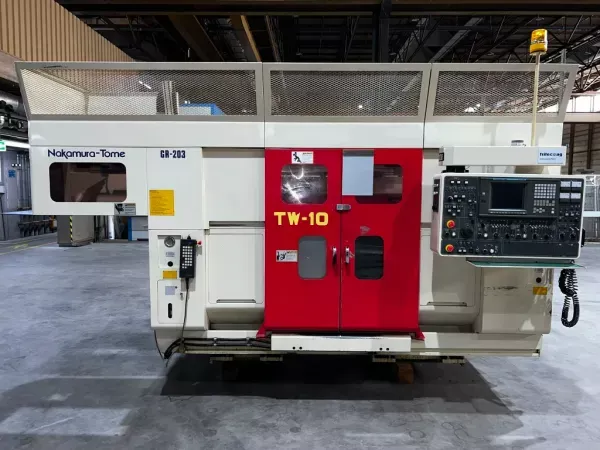

Nakamura CNC CONTROL 5500 rpm TW-10 2 Axis

Effective slide travel (X-Axis): 185 mm
Effective slide travel (Z-Axis): 200 mm
Rapid traverse (X-Axis): 12 m/min
Rapid traverse (Z-Axis): 36 m/min
Cutting feed (X-Axis): 0.0001–500 mm/rev
Cutting feed (Z-Axis): 0.0001–500 mm/rev
Jog feed (X-Axis): 0–1260 m/min
Jog feed (Z-Axis): 0–1260 m/min

Number of spindles: 2
Distance between L and R spindle noses: 870 mm
Spindle drive motor: 5.5 kW
Spindle speed range: 5500 rpm
Spindle nose: A2-5
Hole through spindle: 52 mm
Hole through draw tube: 43 mm
Spindle center height: 925 mm
Front bearing inner diameter: 80 mm

Max bar size: 42 mm
Chuck diameter: 165 mm
Swing over slide cover: 210 mm
Standard turning diameter: 205 mm
Max turning diameter: 210 mm
Max turning length: 155 mm

Number of turret heads: 2
Turret head type: 12-position polygon
Tool stations: 12
Tool size: 20 / 25 mm
I.D. turning tool bore diameter: 25 mm
Turret clamping force: 4 T
Turret head outside diameter: 330 mm
Turret thickness: 80 mm
Tooling clearance: 555 mm
Turret index/positioning: Curvic coupling (180 mm diameter)

Feed motor (X-Axis): AC 1.0 kW
Feed motor (Z-Axis): AC 2.8 kW
Ball screw diameter (X-Axis): 32 mm
Ball screw diameter (Z-Axis): 32 mm
Ball screw pitch (X-Axis): 6 mm
Ball screw pitch (Z-Axis): 12 mm
Distance between slides (X-Axis): 220 mm
Distance between slides (Z-Axis): 300 mm

Lubrication pump motor: 0.005 kW
Lubrication pump delivery: 3.5 / 4.2 cc/4min
Lubrication tank capacity: 4.6 L

Coolant pump motor: 0.18 kW
Coolant pump delivery: 50 / 67 L/min
Coolant tank capacity: 170 L

Hydraulic pump motor: 2.2 kW
Hydraulic pump delivery: 25 + 25 L/min
Hydraulic tank capacity: 55 L
Max delivery pressure: 35 kg/cm³

Power supply: 200 / 220 VAC
Power consumption: 59.0 kVA
Power-up: 65.0 kVA

Pneumatic supply: 0.5–0.7 MPa
Air consumption: 150–200 L/min

Machine dimensions: 2955 x 1901 x 1794 mm
Floor space: 2955 x 1901 mm
Maintenance area: 4510 x 3861 mm
Machine weight: 4600 kg
Noise level:
