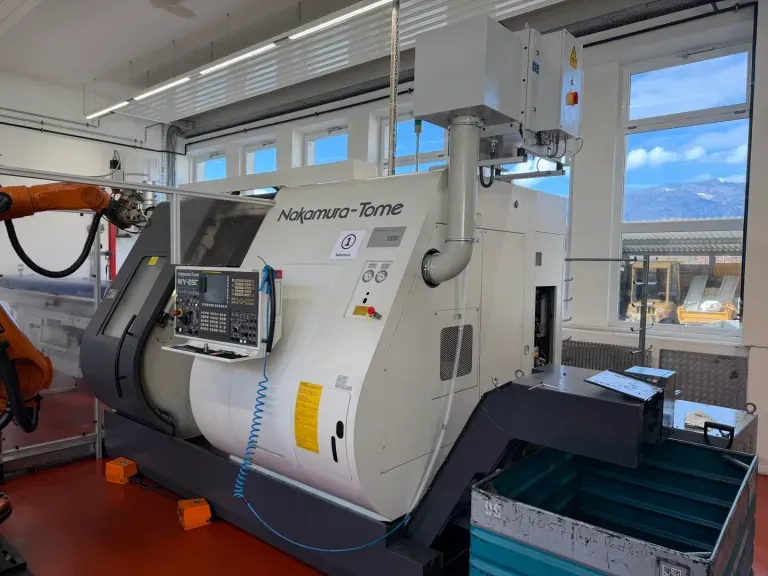

Nakamura CNC Controller 5000 rpm SUPER MILL WY-250 4 Axis

Max Turning Diameter: 215 mm
Standard Turning Diameter: 150 mm
Max Turning Length: 580 mm
Distance Between Centers: max 870 mm / min 250 mm
Bar Capacity (Left/Right): 65 mm / 51 mm

X-Axis Travel: 160.5 mm / 160 mm
Z-Axis Travel: 580 mm / 580 mm
Y-Axis Travel: ±50 mm / -50 mm, +20 mm
B-Axis Travel: 620 mm

Rapid Traverse (X1/X2): 18 m/min
Rapid Traverse (Z1/Z2): 36 m/min
Rapid Traverse (B Axis): 36 m/min
Rapid Traverse (Y Axis): 10 m/min

Spindle Speed: 4500 rpm / 5000 rpm
Spindle Nose: A2-6 / A2-5
Spindle Bore: 80 mm / 63 mm
Front Bearing Inner Diameter: 110 mm / 90 mm
Draw Tube Passage: 66 mm / 52 mm

C-Axis Resolution: 0.001°
C-Axis Max Index Speed: 600 min⁻¹
C-Axis Positioning Time: 1.5 s
Feed Rate: 1–4800 mm/min

Main Spindle Power/Torque: 18.5 / 11 kW – 225 / 185 Nm
Sub Spindle Power/Torque: 15 / 11 kW – 120 / 120 Nm
Tool Spindle Power/Torque: 7.5 / 3.7 kW – 40 / 16 Nm

Turret Type: 12-position drum turret
Tool Stations: 48 (2 × 24)
Tool Size (Square): 25 mm
Tool Size (Round): 32 mm

Driven Tools: Yes
Driven Tool Speed: 6000 rpm / 3600 rpm
Tool Holder Range: 2–20 mm
Collet Size: ER32

Machine Height: 2395 mm
Machine Weight: 14,000 kg
Floor Space: 4436 × 2674 mm / 4905 × 3331 mm

Included Equipment: Gantry loader, loading robot, Iemca Master 880 Verso bar feeder, chip conveyor, transformer, oil mist separator, tool holders, collets, documentation
