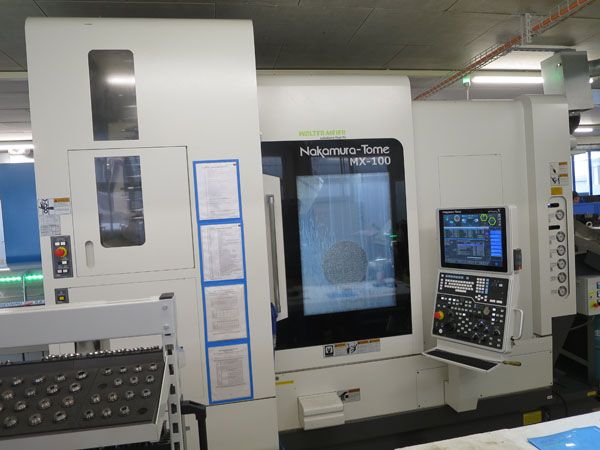

Nakamura Control Fanuc NT-Smart X Control Fanuc 31i-B5 6000 rpm MX-100 5 Axis

Travel X axis 1–585 mm
Travel X axis 2–130.5 mm
Travel Z axis 1–1100 mm
Travel Z axis 2–713 mm
Travel Y axis ±105 mm
Rapid traverse Z axis 40 m/min
Rapid traverse X axis 30/16 m/min
Rapid traverse Y axis 16 m/min

C axis positioning accuracy 0.001°
C axis counter spindle positioning accuracy 0.001°
B axis ±95°

Sub-spindle
Milling head
Y axis
C axis
Bar loader
Workpiece pick-up
Tool presetter
Tool breakage monitoring
Chip conveyor
Coolant system
High pressure coolant pump 70 bar
Exhauster

Max swing 305 mm
Turning length 870 mm
Bar capacity 51 mm

Main spindle speed up to 6000 rpm
Main spindle power 11/7.5 kW

Counter spindle taper A2-5
Counter spindle speed up to 6000 rpm
Counter spindle power 11/7.5 kW

Milling spindle speed 12000 rpm
Milling spindle taper Capto C4
Milling spindle power 11/7.5 kW

Tool changer capacity 72
Max tool diameter 55 mm
Max tool length 180 mm
Max tool weight 4 kg

Turret positions 24
Driven tool positions 12
Driven tool speed 6000 rpm
Driven tool power 7.1/2.2 kW

Machine dimensions 6500 x 2800 x 2700 mm
Machine weight 17000 kg

Bar feeder IRCO ILS-MUCK
Collet chuck quantity 2
Tool holders quantity 80
Tool holder type Capto C4
