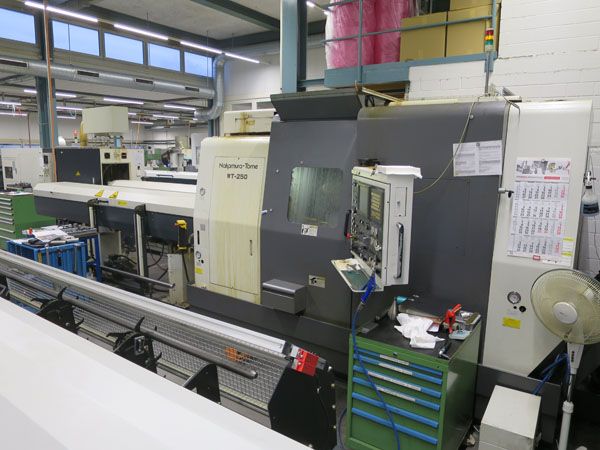

Nakamura Fanuc 18i-TB 400 rpm WT250 3 Axis

Longitudinal travel 600 mm
Cross travel 195 mm
Y axis travel ±41 mm
Rapid traverse longitudinal 24 m/min
Rapid traverse cross 12 m/min

C axis main spindle 400 rpm
C axis counter spindle 400 rpm

Control Fanuc 18i-TB
Sub-spindle
Driven tools
C axis
Y axis
Automatic door
Piece catcher
Tool presetter
Exhauster
Chip conveyor
Coolant system with paper filter
High pressure coolant pump 20 bar

Turning diameter 250 mm
Swing over bed 250 mm
Turning length 555 mm
Chuck size max 165 mm

Main spindle taper A2-6
Main spindle speed 50–4500 rpm
Main spindle power 18.5 kW
Main spindle bore 65 mm

Counter spindle taper A2-5
Counter spindle speed up to 5000 rpm
Counter spindle power 7.5/11 kW
Counter spindle bore 42 mm

Driven tool speed 30–3600 rpm
Driven tool power 3.7/5.5 kW

Upper turret positions 24
Upper driven tool positions 12
Lower turret positions 24
Lower driven tool positions 12

Machine dimensions 8000 x 2300 x 2400 mm
Machine weight 7500 kg

Bar feeder LNS Sprint S2/3M
Bar capacity 10–80 mm
Bar length 3300 mm

Collet chuck quantity 2
Collet chuck Hainbuch

Fixed tool holders quantity 4
Driven tool holders quantity 2
