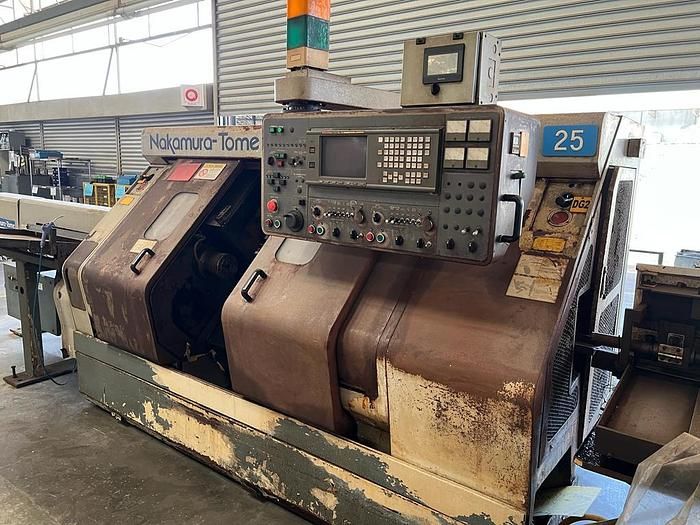

Nakamura Tome CNC CONTROL 6,000 RPM TW10 Twin Spindle Twin Turret Lathe 2 Axis
Ref :
2741498-3-AW
Condition :
Used
Manufacturer :
Nakamura Tome
Controller :
CNC CONTROL
Spindle Speed :
6,000 RPM
Model :
TW10 Twin Spindle Twin Turret Lathe
Nb Of Axis :
2 Axis
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
ASIA (South East)
ASIA (South East)
X-Axis Travel 185 mm
Z-Axis Travel Left spindle 200 mm
Z-Axis Travel Right spindle 620 mm
Bar capacity 42 mm
Maximum swing over 210 mm
Maximum turning diameter 209 mm
Maximum turning length 155 mm
Distance between spindles 765 mm
Number of spindles 2
Number of turrets 2
Nominal chuck size 150 mm
Spindle speeds 55 – 6,000 RPM
Spindle motor 15 kW
Approximate machine weight 5,500 kg
