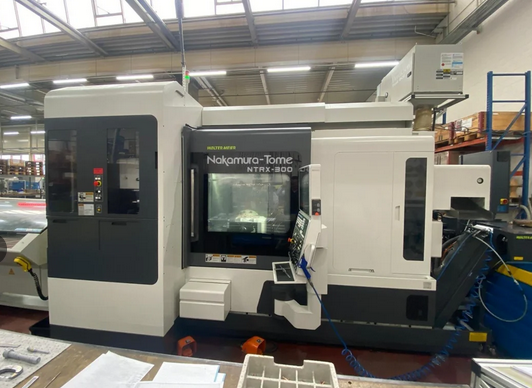

Nakamura Tome CNC Controller 4500 rpm NTRX 300 5 Axis

X-Axis (Cross Travel): 700 mm
Y-Axis: ±125 mm
Z-Axis (Longitudinal Travel): 1125 mm
B Axis Tilt: 225°
C Axis: 360°
Resolution: 0.001
Rapid Traverse: 36 m/min

Control & Features: 5-axis simultaneous machining capability
Control & Features: CNC machining and turning center from bar

Bar Capacity / Workpiece: Ø 640 mm max diameter
Bar Capacity / Workpiece: 1100 mm max length

Spindle Nose: Capto C6
Main Spindle Speed: up to 4500 rpm
Milling Spindle Speed: up to 8000 rpm
Spindle Motor Power: 15/11 kW

Tool Magazine Capacity: 40 tools
Tool Diameter Max: 90 mm
Tool Length Max: 300 mm

Air Supply: 5–7 bar
Voltage: 3x400 V, 50 Hz
Total Power: 65.1 kVA

Machine Weight: 18000 kg
Dimensions (L×W×H): 4530 × 2670 × 2615 mm

Coolant system
Paper filtration system
Toolholder set
Milling cutters set
Drills set
Lamp
Oil mist extractor
Bar loader
