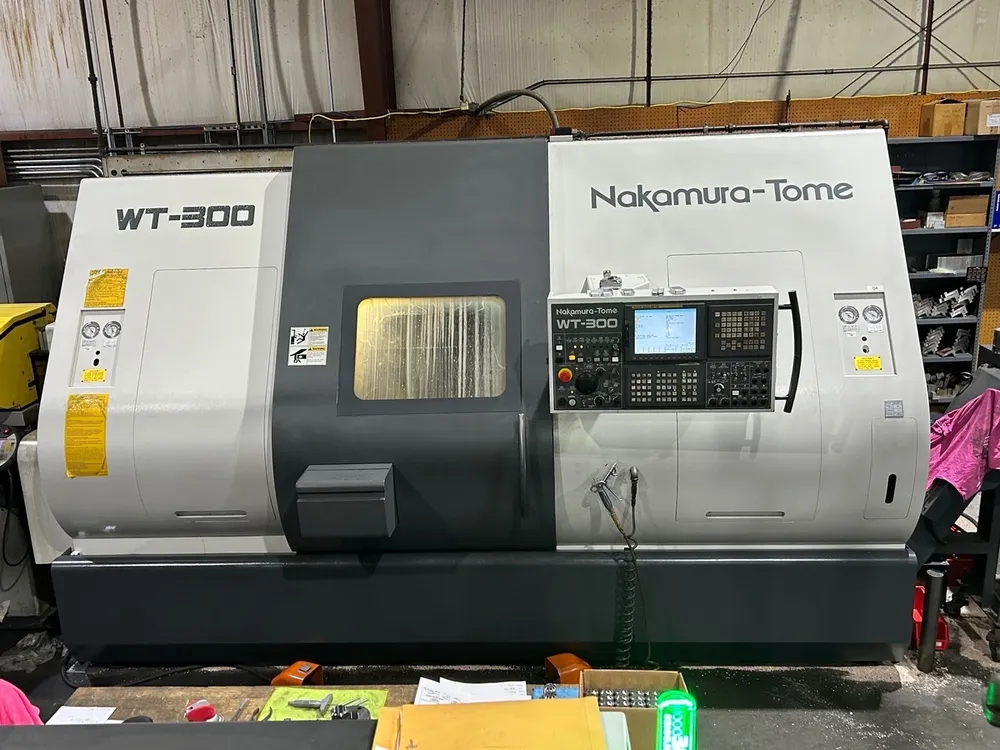

Nakamura Tome FANUC 18i-TB 4500 rpm WT-300MMY 7 Axis

Axis travel X1: 7.68 in
Axis travel X2: 7.68 in
Axis travel Y1: 4.72 in
Axis travel Z1: 30.71 in
Axis travel Z2: 30.71 in
Axis travel W: 33.46 in
7-axis CNC
C axis (main spindle)
C axis (sub spindle)
Control: FANUC 18i-TB
Manual Guide i
Thread cutting
Continuous thread cutting
Thread cutting retract
Variable lead thread cutting package
Polar coordinate interpolation
Cylindrical interpolation
Helical interpolation
Background edit
Extended part program editing
Graphic function
Dynamic graphic function
Hydraulic pressure interlock
Tool presetter
Automatic parts catcher
Swing over bed: 10.63 in
Maximum turning diameter: 10.63 in
Maximum turning length: 30.71 in
Distance between spindles: 43.31 in
Bar capacity (main spindle): 2.5 in
Bar capacity (sub spindle): 2.5 in
Spindle speed (main spindle): 4500 rpm
Spindle speed (sub spindle): 4500 rpm
Spindle motor (main spindle): 25 HP
Spindle motor (sub spindle): 25 HP
Spindle nose (main spindle): A2-6
Spindle nose (sub spindle): A2-6
Rotary tool speed (turret 1): 3600 rpm
Rotary tool motor (turret 1): 7.5 HP
Rotary tool speed (turret 2): 3600 rpm
Rotary tool motor (turret 2): 7.5 HP
Chuck size (main spindle): 8 in
Chuck size (sub spindle): 8 in
Turret 1: 24 stations
Turret 2: 24 stations
Milling on both turrets
Synchronized Z axes
High-pressure coolant (both turrets)
300 PSI through-tool coolant
Chip conveyor
12 rotary tool holders
Static tool holders
Two 8 in 3-jaw Kitagawa hydraulic chucks
Machine weight: 27,000 lb
