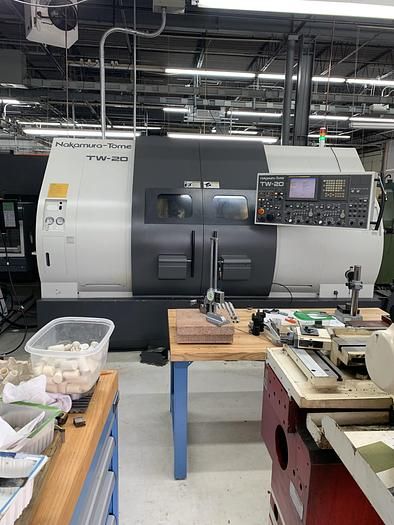

Nakamura Tome Fanuc 18i-TB 5000 RPM TW-20MM 3 Axis

Nakamura Tome TW-20MM
2006

Twin Facing Spindles Design
Full "C" Axis Spindle Rotation Both Spindle
Live Milling / Drilling Capability on Both Turrets
Collet Chuck - Both Spindles
Barfeed Interface
LNS Quick Load Servo S3 Short Bar Feed Unit
Parts Catcher on Both Sides

Chip Conveyor
2.5" Bar Capacity Option on Left Spindle
High Pressure Coolant Pump - Both Sides
Coolant Tank with Pumps
3.5" Floppy Disk Interface
RS232 Port Interface
(2) Live Tool Holders per Turret Included
(2) Boring Bar Holders per Turret
(2) Turning Holders per Turret


Control Fanuc 18i-TB
Chuck Type Left / Right Spindle Collet Chuck / Collet Chuck
Maximum Swing Bed Left / Right 10.63" / 8.46"
Maximum Turning Diameter 10.63"
Maximum Turning Length 7.56"
Distance Between Spindles 42.52"
Maximum Bar Capacity Left Side / Right Side 2.5" / 2.0"
X-Axis Travel (Both Sides) 7.68"
Z-Axis Travel (Left / Right) 10.43" / 30.71"
C Axis Spindle Rotation - Both .001 Degree
Spindle Nose / Spindle Bore Left / Right A2-6" / 3.15" / 2.56"
Spindle Speed Left / Right 4,500 RPM / 5,000 RPM
Spindle Motor - Both 30 minutes/continuous 20 HP / 15 HP
Rotary Tool Speed / Rotary Motor 3,600 RPM / 5 HP
Number of Turret Positions - Both 12 Station each
Rapid Traverse Rates X / Z 630 IPM / 1181 IPM
Machine Dimensions 137" x 83" x 85"
Machine weight 17,160 lbs.
