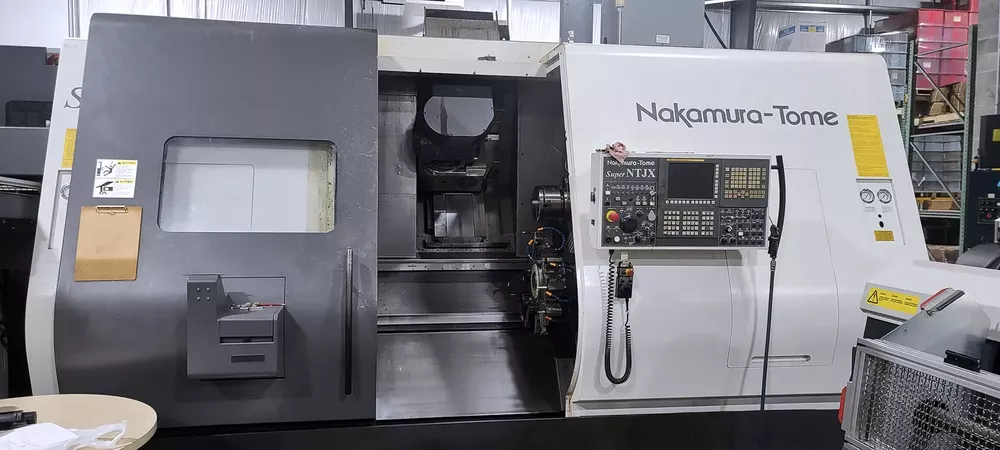

Nakamura Tome Fanuc 31i-A CNC control 6000 RPM SUPER-NTJX 8 Axis

X1 travel 17.91"
X2 travel 8.75"
Z1 travel 42.91"
Z2 travel 39.56"
B2 travel 39.68"
Y1 travel ±2.76"
Y2 travel +0.787", -1.96"
C-axis function
Fanuc 31i-A CNC control
Bar capacity 2.5"
Max turning diameter 9.64"
Max turning length 42.91"
Distance between spindles max 50.78"
Distance between spindles min 8.26"
Left spindle speed 4500 RPM
Right spindle speed 6000 RPM
Left spindle motor 20/15 HP (221.5/162.5 N·m)
Right spindle motor 15/10 HP (208/115 N·m)
Tool spindle speed 12,000 RPM
Tool spindle motor 10/5 HP (Max 54 N·m)
Milling turret speed 3600 RPM
Milling turret motor 7.5/5 HP
Tool shank type CAPTO-C6
ATC tool magazine 40+120 (160)
Y-axis upper tool spindle
Y-axis lower turret
NT-Nurse II system
