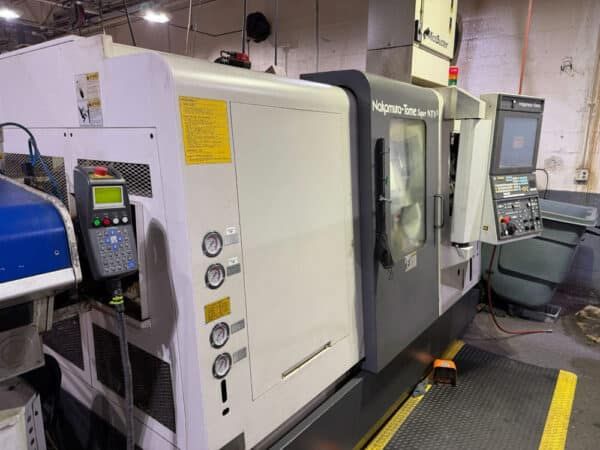

Nakamura Tome Fanuc 31i-B 5000 rpm SUPER NTY3 10 Axis

3 linear X axes → X1, X2, X3
3 linear Z axes → Z1, Z2, Z3
3 Y axes → Y1, Y2, Y3
1 B axis → for turret movement
2 C axes → one on each spindle (left & right)

X1 Travel: 160.5 mm
X2 Travel: 160.5 mm
X3 Travel: 160.5 mm
Z1 Travel: 235 mm
Z2 Travel: 235 mm
Z3 Travel: 685 mm
Y1 Travel: ±45 mm
Y2 Travel: ±45 mm
Y3 Travel: ±35 mm
B Axis Travel: 770 mm

Rapid Traverse X1/X2/X3: 20 m/min
Rapid Traverse Z1/Z2/Z3: 40 m/min
Rapid Traverse B Axis: 40 m/min
Rapid Traverse Y1/Y2/Y3: 8 m/min

C Axis Increment: 0.001°
C Axis Rapid Index Speed: 600 rpm
C Axis Feed Rate: 1–4800 °/min
C Axis Clamp: Disk clamp
C Axis Connection Time: 1.5 sec
C Axis: Yes

Control: Fanuc 31i-B
Y Axis on all 3 turrets
Bar Capacity: 51 mm
Optional Bar Capacity: 65 mm
Max Turning Diameter: 225 mm
Standard Turning Diameter: 150 mm
Max Turning Length: 685 mm
Distance Between Spindles Max: 970 mm
Distance Between Spindles Min: 200 mm
Chuck Size: 165 mm
Left Spindle Speed: 5000 rpm
Right Spindle Speed: 4500 rpm
Spindle Speed Range: Stepless
Left Spindle Nose: A2-5
Right Spindle Nose: A2-6
Left Spindle Through Hole: 65 mm
Right Spindle Through Hole: 80 mm
Left Front Bearing Diameter: 90 mm
Right Front Bearing Diameter: 110 mm
Left Draw Tube Hole: 52 mm
Right Draw Tube Hole: 66 mm
Driven Tool Spindle Speed: 6000 rpm
Driven Tool Stations: 12
Turret Type: Dodecagonal drum
Number of Turrets: 2
Index Positions: 24
Tool Size Square: 25 mm
Tool Size Round: 32 mm
Tool Holder Capacity: Ø1–Ø16 mm
Cross Holder Capacity: Ø1–Ø16 mm
Left Spindle Motor Power: 15/11 kW
Right Spindle Motor Power: 11/7.5 kW
Driven Tool Motor Power: 5.5/3.7 kW
Machine Height: 2200 mm
Machine Length: 3814 mm
Machine Width: 2218 mm
Machine Weight: 10000 kg
Power Requirement: 43.8 kVA
Air Supply: 400–450 NL/min
Air Pressure: 0.5–0.7 MPa
Barfeeder: Iemca Master 80 HF 12 ft
Mist Collector
Chip Conveyor
Live Tooling
Tool Holders Included
