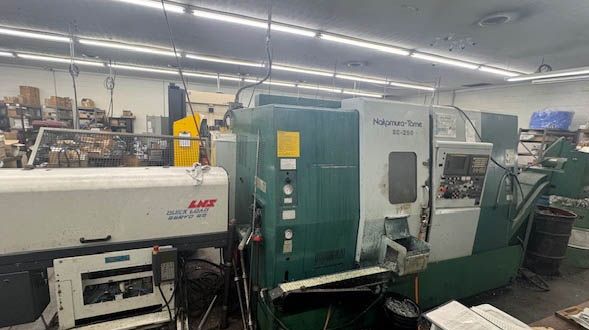

Nakamura Tome Fanuc Series 18i-T CNC Control 4500 rpm SC-250 4 Axis

Nakamura-Tome SC-250
2004

AXIS TRAVEL
Slide travel (X) 7”
Slide travel (Z) 21.7”
Y-Axis Travel +/- 1.61”
Slide Travel (B) 19.7”
Rapid feed (X) 630 IPM
Rapid feed (Z) 1181 IPM
Rapid feed (B) 1181 IPM (optional)

SPINDLE
Spindle Speed 4500 rpm
Spindle Speed Range Stepless
Spindle Nose A2-6

SUB SPINDLE (OP.)
Spindle Speed 5000 rpm
Spindle Speed Range Stepless
Spindle Nose A2-5


CAPACITY
Max Turning Diameter 11.81”
Distance Between Spindles max 27” / min 11” with sub spindle
Max Turning Length 19.68”
Bar Capacity 2.56”

**Hole Through Draw Tube **2”? (**Depends on Chuck Package)

TURRET
Number of Tool Stations 12

MILLING TOOLS
Spindle Speed 3600 rpm
Number of Milling-Tool Stations 6

DRIVE MOTOR POWER
Main Spindle 20 HP
Sub Spindle (op.) 15 HP
Driven Tool Spindle 7.5 HP
GENERAL
Machine Weight 8378 lbs

Equipped With (subject to buyer verification):
Fanuc Series 18i-T CNC Control
Live Tooling
Sub Spindle
Parts Catcher with Exit Conveyor
Chip Conveyor
LNS Quick Load Servo (S2?) Barfeed
Auto Tool Setter
Y-Axis
2.56” Bar
