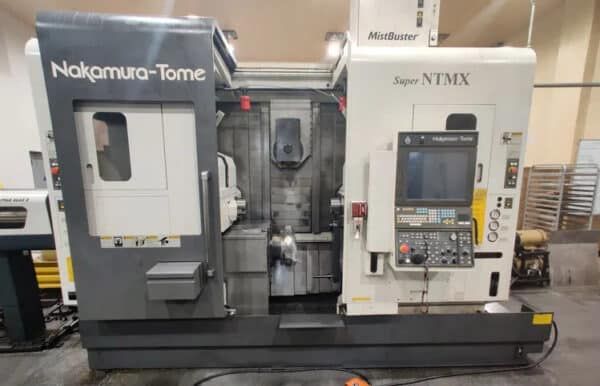

Nakamura Tome Fanuc Series 31i-A5 CNC Left spindle speed: 4500 RPM/Right spindle speed: 5000 RPM SUPER NTMX 5 Axis

X-axis travel: X1 22.44", X2 5.13"
Z-axis travel: Z1 51.06", Z2 25.90"
Y-axis travel: 7.87"
B-axis travel: B2 30.31"
C-axis built motor
C-axis indexing increment: 0.001°
C-axis rapid index speed: 600 RPM
C-axis programmable range: ±9999.999°
C-axis cutting feed: 4800 degree/min
B-axis swivel area: 190° (+/-95°)
B-axis rapid index speed: 37.5 RPM

Control: Fanuc Series 31i-A5 CNC
Bar capacity: 2.5" left / 2.0" right
Maximum turning diameter: 8.07"
Standard turning diameter: 7.67"
Maximum turning length: 30.70"
Distance between spindles: 38.58"
Left spindle nose: A2-6
Left spindle bore: 63 mm
Left draw tube bore: 80 mm
Right spindle nose: A2-5
Right spindle bore: 63 mm
Right draw tube bore: 52 mm
Tool spindle speed: 12000 RPM
Tool spindle taper: 1/10 short taper
Tool spindle bearing ID: 80 mm
Left spindle motor: 15 / 10 HP
Right spindle motor: 15 / 10 HP
Tool spindle motor: 10 / 7.5 HP
Rapid traverse X1: 1181 IPM
Rapid traverse X2: 630 IPM
Rapid traverse Z1: 1575 IPM
Rapid traverse Z2: 1575 IPM
Rapid traverse Y1: 630 IPM
Cutting feed X/Z: 4-20"/rev
Cutting feed B-axis: 4-20"/rev
Capto C4 tooling
48 tool positions
Maximum tool diameter: 2.36"
Maximum tool diameter without adjacent tools: 3.14"
Maximum tool length: 7.086"
Maximum tool weight: 4 kg
Tool change time: 1.3 sec
Lower turret: Dodecagonal drum turret
Turret index time 1 station: 0.2 sec
Turret index time 180°: 0.7 sec
Machine length: 186"
Machine length with chip conveyor: 218"
Floor space: 151.22" x 112.48"
Weight: 31,967 lbs
Power requirement: 78 kVA
Air supply: 150~200 NL/min, 0.5~0.7 MPa
