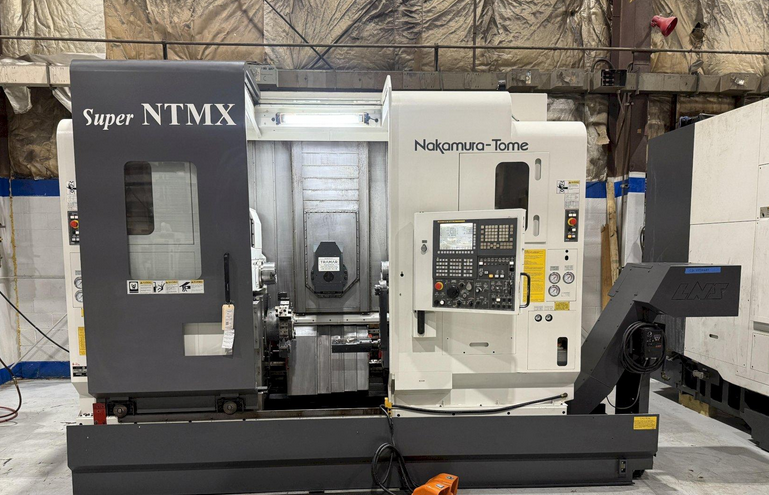

Nakamura Tome SUPER NTMX 9 Axis

X axis travel: 22.44"
X2 axis travel: 5.14"
Z axis travel: 51.06"
Z2 axis travel: 25.9"
Y axis travel: 7.86" (+/- 3.94")
B axis travel: 30.3"
Rapid traverse (X/Y/Z): 1181/630/1574 ipm
B axis indexing: 190° (+/- 95°)
C1/C2 axis index: 0.001°
Fanuc Series 31-Model A5 CNC control
CNC control
9 axes
Bar capacity: 2"
Turning diameter: 8.66"
Spindle speed: 5000 rpm
Main motor: 15 hp
Spindle nose: A2-5
Sub spindle
Sub spindle speed: 5000 rpm
Sub spindle motor: 15 hp
Sub spindle nose: A2-5
Live tooling
Milling spindle taper: CAPTO C4
Milling spindle speed: 12000 rpm
Live tooling motor: 10 hp
Chuck size: 6"
Sub spindle chuck: 6"
Turret capacity: 24
ATC capacity: 2 x 24 stations
Chip conveyor
Coolant tank
Coolant pump
Machine dimensions: 190" x 165" x 104"
Machine weight: 32000 lbs
