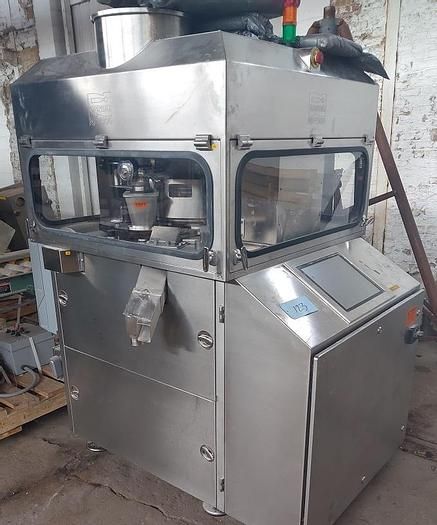

Natoli NP-500 Tablet press

45 station 328 tooling
Maximum round tablet diameter: 7/8” (22.23mm).

Maximum shaped major axis: 15/16” (23.81mm).
Filling cams depth of fill range: Shallow: .0625 to .6875” (1.6 to 17.5mm).
Standard: .21875 to .875” (5.5 to 22mm).
Deep: .625 to 1.375” (16 to 35mm).
Tablets per minute: 900 to 5,500 (54,000 to 330,000/hour).


Machine features extended compression dwell time, 69% more than standard “D” fill, reducing the need for pre-compression and allowing increased tablet size and weight.

Equipped with automatic weight control for precise, consistent and accurate tablets.

Press Specifications: Die diameter: 1-5/16” (33.24mm). Maximum die depth: 1-1/2” (38.1mm).

Punch barrel diameter: 1-1/8” (28.58mm). Hopper capacity: 1,700” 3. (27,858cm3).

Machine is constructed in stainless steel and comes with 4 sided Plexiglas doors, with full monitoring, emergency safety switches,and emergency stop controls.

Capable of running single side machine with precompression.
Power and Specifications
15 HP, 3/60/460-volt drive, (VFD), 42-1/2 amps.
requires 90 psi air, 8.5 cmm vacuum at 76mm of H20.
Dimensions: 68” x 53” x 82” High.
Weight: 7,500 pounds.
