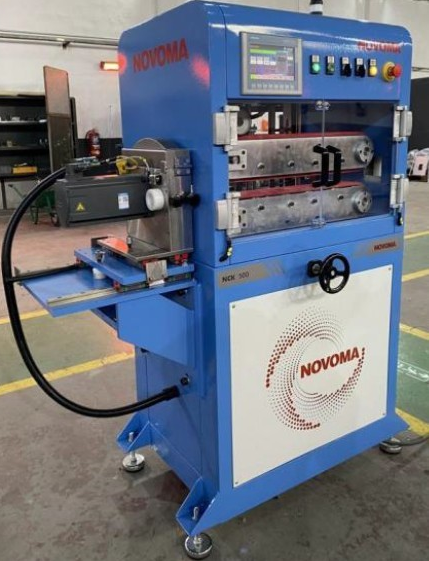

NCK 500

Cutting Machines
Manufacturer: NOVOMA
Year of Manufacture: 09.2025

Specification: Pull-off and hose cutting unit
• Cutting unit: Impact knife cutting with cutting bushings
• Material diameter approx.: 5 - 90 mm
• Transport via two drive belts
• Distance between belts max.: 90 mm
• Belt adjustment via motor, setting via control panel
• Lower belt fixed, upper belt motor adjustable
• Contact length of the belt approx.: 500 mm
• Contact width: 80 mm
• with a maximum speed of approx. 60 m/min
• Length measurement electronically: 5 - 99,999.9 mm
• Cutting accuracy max.: +/- 2 mm
• Cutting is done via servo motor: 1 kW
• Power supply: 380/400V, 50Hz, 5KW
• Material feed direction: from right to left
• Weight approx.: 400 kg
• Further description can be found in the attached
