Neff DF25 29.5 tons at 3,000 PSI

Ref : 2722405-3-CP
Condition : Used
Manufacturer : Neff
Model : DF25
Pressure : 29.5 tons at 3,000 PSI
Year(s) : 2001
Quantity : 1
Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

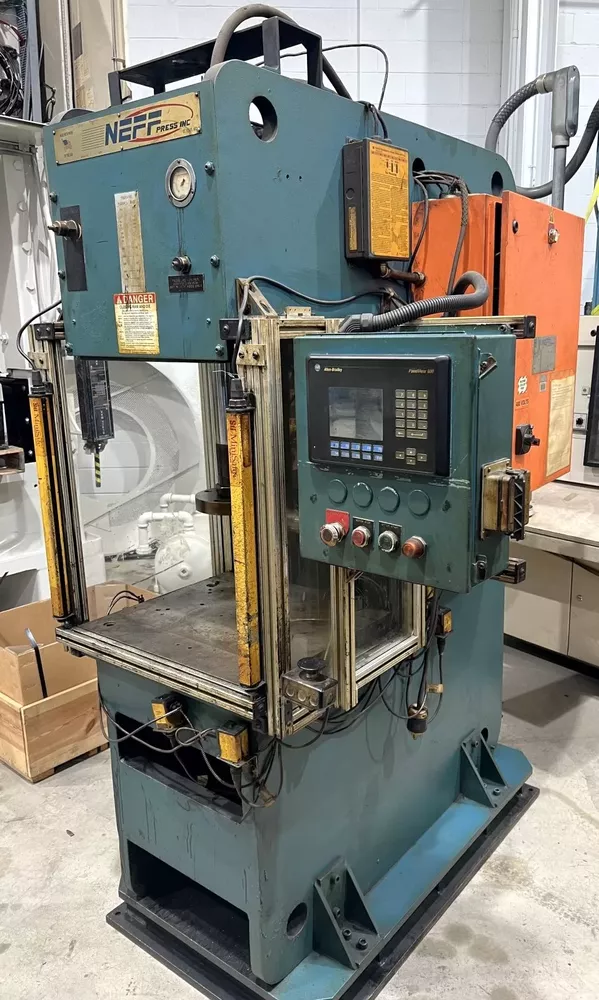

Neff DF25
2001

29.5 tons at 3,000 PSI
10″ stroke
20″ max daylight
24″ x 21″ bed area (R-L x F-B)
3.5″ dia. ram rod with 8″ dia. collar
10.25″ throat depth
5″ cylinder bore
839 IPM approach speed
94 IPM pressing speed
806 IPM return speed
32.6″ floor to bed height on 6″ riser plate
Allen-Bradley SLC 5/02 CPU controller
PanelView 600 touchscreen
35 GPM hydraulic pump
3,000 PSI max hydraulic pressure
60-gallon hydraulic reservoir
21.2 full load amps hydraulic unit
15 HP Baldor industrial motor
230/460V 3-phase 60Hz motor
38.8/19.4 amps motor
Approx. dimensions 55″ x 65″ x 88″ high
Approx. weight 6,000 lbs
Variable speed control
