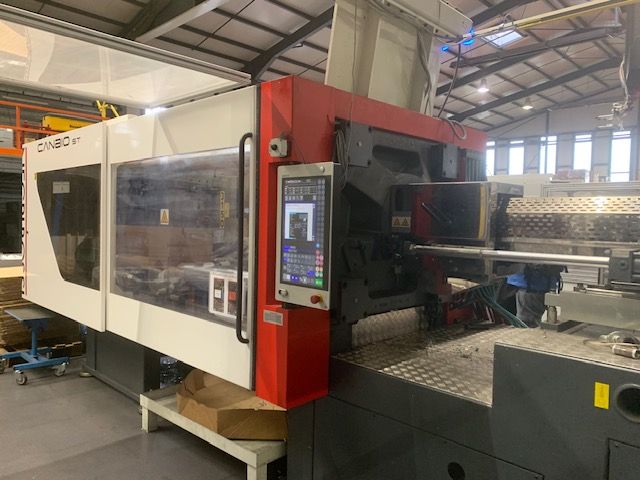

Negri Bossi 400T H 2920 Canbio ST 400 T

Injection Unit
Screw Diameter: 70 mm
Calculated Injection Volume: 1385 cm3
Length/Diameter Ratio: 20 L/D
Maximum Injection Rate: 345 cm3/s
Material Pressure: 2100 bar
Screw Speed: 210 RPM
Hydraulic Motor Torque: 3150 Nm
Number of Temperature Zones: 5 N

Clamping Unit
Clamping Force: 4000 kN
Opening Stroke: 730 mm
Minimum Mold Thickness: 250 mm
Passage Between Columns: 810 x 680 mm
Plate Dimensions: 1185 x 1060 mm

General
Heating Power: 45 kW
Total Installed Power: 73 kW
Dimensions: 9.4 x 2.2 x 2.3 m
Weight: 16,500 kg

Other
Commissioned: 2018
Number of hours: 20,500 h
Tonnage: 400
