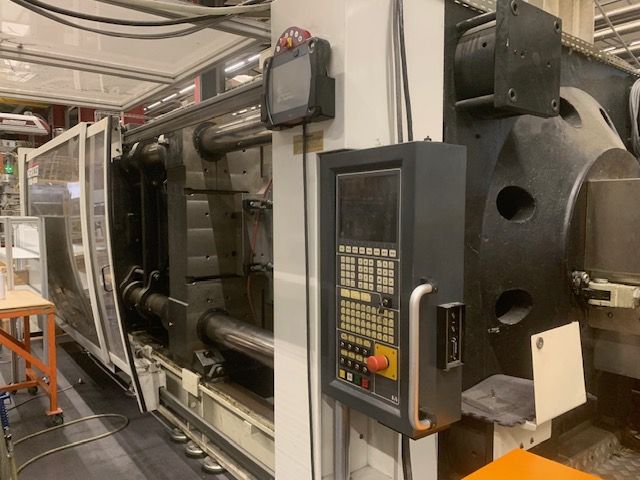

Negri Bossi V850-6500 850 T

Injection Unit
Screw Diameter: 100 mm
Calculated Injection Volume: 3925 cm3
Length/Diameter Ratio: 20 L/D
Maximum Injection Rate: 750 cm3/s
Material Pressure: 1670 bar
Plasticizing Capacity PS: 120
Screw Speed: 160 RPM
Hydraulic Motor Torque: 8250 Nm
Number of Temperature Zones: 6 N

Clamping Unit
Clamping Force: 8500 kN
Opening Stroke: 1200 mm
Minimum Mold Thickness: 400 mm
Passage Between Columns: 1140 x 1020 mm
Plate Dimensions: 1670 x 1580 mm

General
Heating Power: 74 kW
Total Installed Power: 100 kW
Dimensions: 11.5 x 2.3 x 2.6 m
Weight: 39,600 kg

Other
Equipment: Electric motor on the metering system
Commissioned: 2007
Number of hours: 44,000 h
Tonnage: 850
