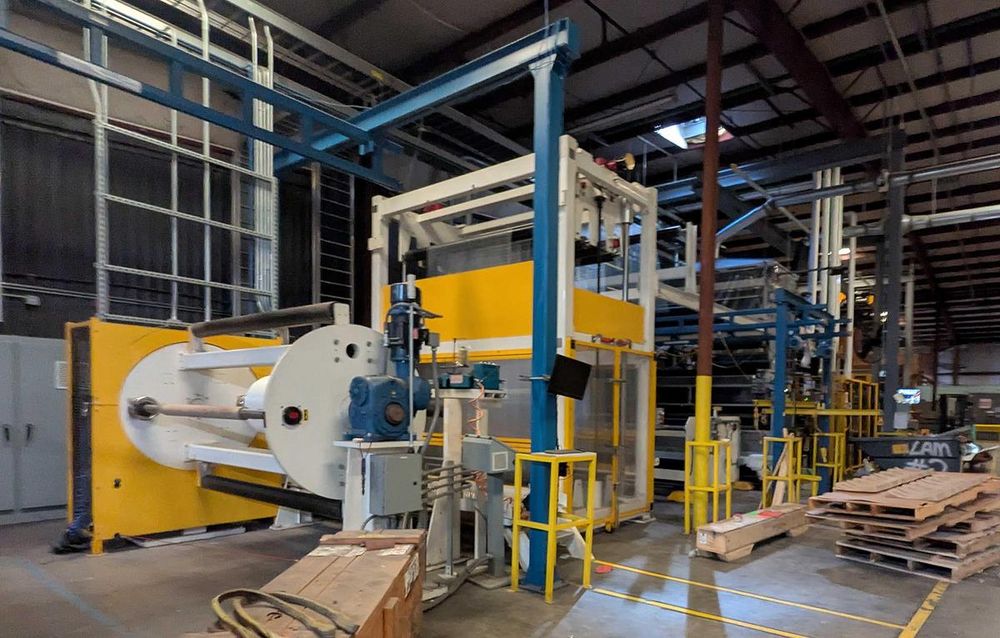

New Era Coating, Laminating, and Embossing Line

Year 2021 and early 2022

Line includes the following:
1. Fabric Turret Unwind
2. Operator Platform #1
3. Fabric Accumulator
4. Fabric Web Guide
5. Superstructure
6. Fabric Pull Roll/Conditioning Section
7. Film Unwind #1
8. Operator Platform #2
9. Gravure Coating Station #1
10. Coater Enclosure #1
11. Film Unwind #2
12. Operator Platform #3
13. Gravure Coating Station #2
14. Coater Enclosure #2
15. Preheat & Laminating/Embossing Section
16. Operator Platform #4
17. Web Guide
18. Turret Winder
19. Static Mitigation
20. Drive & Control System

GENERAL SPECIFICATION:
Web Width: 61” – 90”
Line Speed: Process Speed: 4 – 40 YPM

Fabric Unwind:
Web Material: 2.7 – 6.7 oz/ yd2 Woven PET, Woven PP, Woven fiberglass, Nonwoven PET, Woven Nylon
Maximum Roll Diameter: 30”
Roll Weight, Maximum : 2,000 lbs.
Core: 3” ID, 4” OD (to be confirmed)
Tension: 0.5-2.0 pli (assumed)

Film & Foil Unwinds:
Web Material: 1-8 mil PVC, 1-3 mil PTFE, Up to 10 mil PET (future), PP (future), Urethane (future), Aluminum (future)
Maximum Roll Diameter: 24”
Roll Weight, Maximum: 1,500 lbs.
Core: 3” ID, 4” OD
Tension: 0.5-2.0 pli (assumed)
