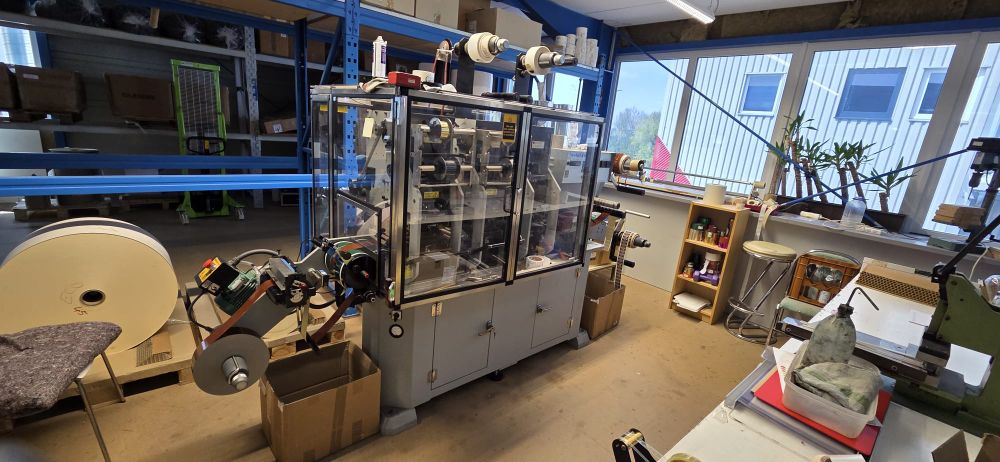

Newfoil 4500 Hot foil stamping

2 × Hot foil stamping stations
1 × Flatbed die-cutting station
1 × Register sensor for precise label positioning

General Specifications:
Max. web width: 150 mm
Max. print area per station: Approx. 127 mm × 127 mm
Max. foil width: 130 mm per stamping head
Substrate types: Self-adhesive label materials (paper, PP, PE, PET)
Foil feed: Programmable, with tension control
Web feed system: Intermittent motion with precise servo control
Register system: Optical register sensor for pre-printed label alignment
Max. speed: Up to 4,000 impressions/hour (depending on job setup and material)
Control system: PLC-based, with touchscreen interface (model-dependent)
Power supply: Typically 400V / 3-phase / 50Hz
Compressed air requirement: Approx. 6 bar
