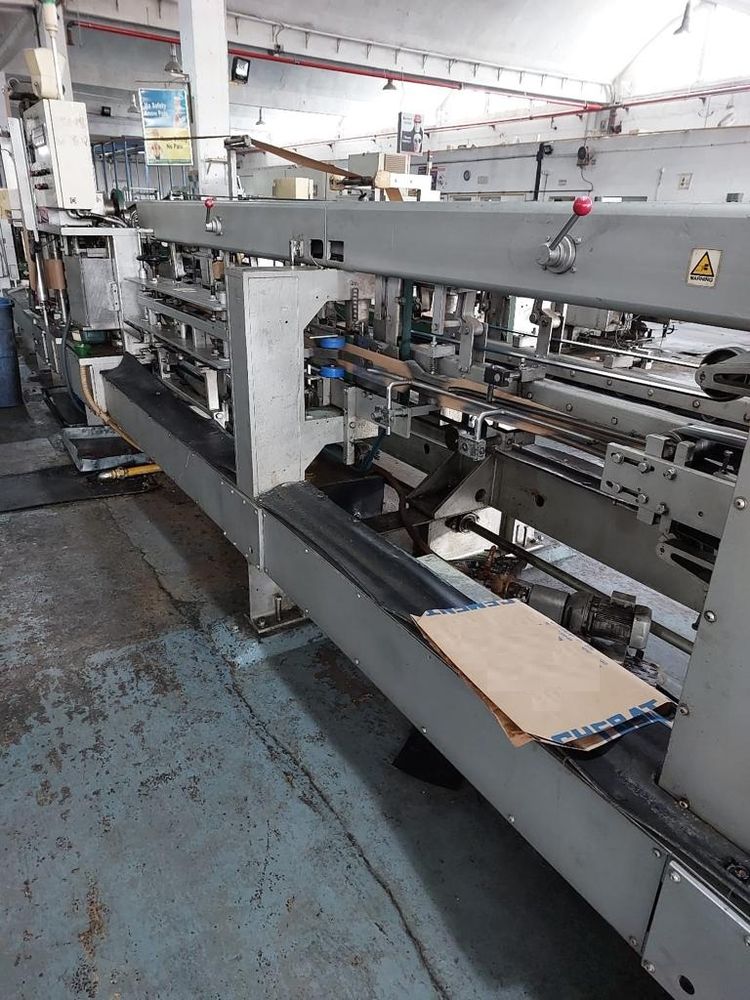

NEWLONG 612B

4 plies
1 valve station
Type of valves:
Valve reinforcement extended inward. The filling aperture lies below the patch
“Tubular valve” with fold for reinforcing the leading edge. The tube is formed when the bottom flaps are folded
Min-max bag length: 365 – 830 mm
Min-max tube length: 490 – 1020 mm
Min-max tube width: 280 – 550 mm
Min-max bottom width: 85 – 130 mm
Min-max bottom centre distance: 280 – 700 mm
Min-max bottom opening distance: 230 – 320 mm
Min-max valve sheet length: 80 – 220 mm
Min-max valve sheet width: 100 – 280 mm
Valve ply: 1
Bottom patch installed by the owner (not original Newlong)
Bottom patch 2 colors each side: Width. 85-160 mm, Length. 160 – 480 mm
Speed: 185 sacks/min
Main motor: 11 kW
Vent hole perforation: yes
CE certificate: no
Visible in operation
Immediately available
