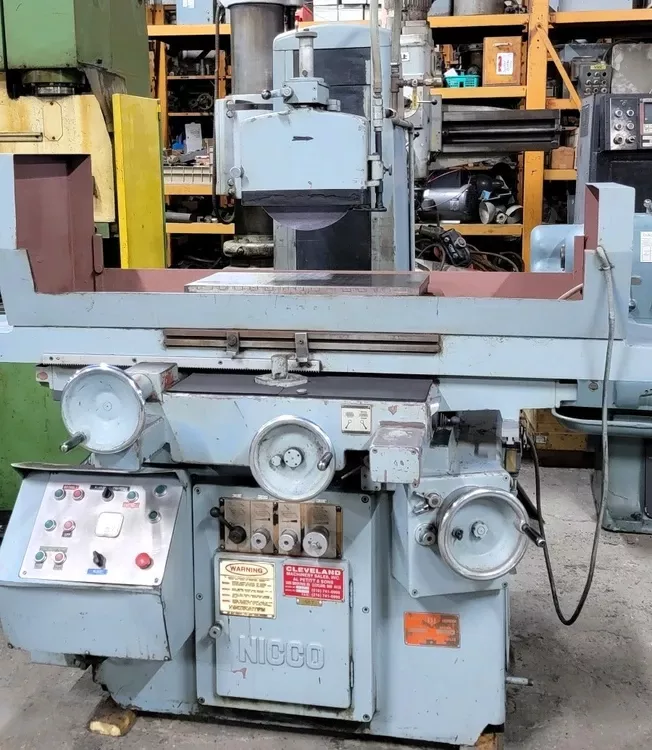

Nicco NSG-6

Table work area: 24" x 12"
Max table load: 990 lbs
Longitudinal travel: 27"
Crossfeed travel: 13"
Distance from magnetic chuck to spindle center: 15"
Grinding wheel size (OD x W x ID): 12" x 1.2" x 3"
Grinding wheel diameter: 12"
Grinding wheel width: 1.2"
Spindle speed max: 1700 RPM
Spindle motor: 5 HP / 3.7 kW / 1730 RPM
Hydraulic motor: 2 HP
Vertical feed handwheel (per 9 rev): 0.04"
Vertical feed handwheel (per grad.): 0.0001"
Crossfeed handwheel (per rev): 0.120"
Crossfeed handwheel (per grad.): 0.0005"
Intermittent crossfeed range: 0.120" to 800"
Continuous crossfeed speed range: 6.6 to 16.4 ft/min
Longitudinal speed range: 3.3 to 82 ft/min
Electrical: Wired 220V 3PH dual voltage
Magnetic chuck: 12" x 24"
Machine height: 73"
Machine weight: Approx. 5,500 lbs
Floor space: 109" x 82" x 77" H
Coolant system: All-in-one coolant system
Dust collector: Included
Magnetic separator: Included
Auto way lube system: Included
Leveling system: 6-point with pads
