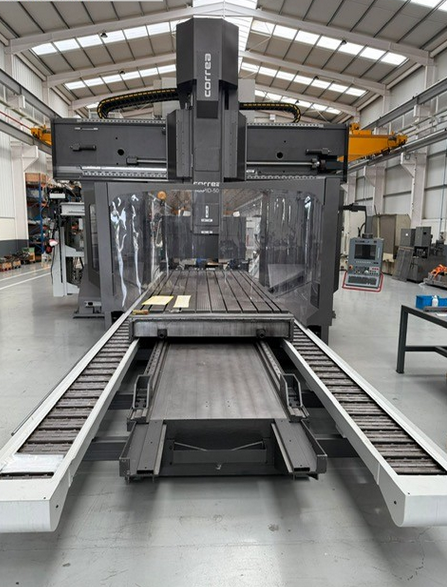

Nicolas Correa RAPID 50 6000 rpm

X-travel: 5000 mm
Y-travel: 3100 mm
Z-travel: 1200 mm

Control: HEIDENHAIN TCN 530 HSCI
Table surface area: 5000 x 2000 mm
T-slots: 11
T-slots width: 22 mm
Table weight: 30000 kg

Rapid traverse X-axis: 20000 mm/min
Rapid traverse Y-axis: 30000 mm/min
Number of spindle speeds: 6000 rpm
Spindle power: 32 kW
Taper: ISO 50

Distance between columns: 2800 mm
Internal cooling system: 20 bar
Weight: 65000 kg
Dimensions: 15100 x 6200 x 6250 mm

Head UAD II positioning 0.1º / 0.1º
Speed ranges 2
Tool clamping hydraulic
Head 2 vertical mandrel
ATC positions 30
2 longitudinal chip conveyors
1 cross chip conveyor
Portable handwheel
Laser tool presetter
