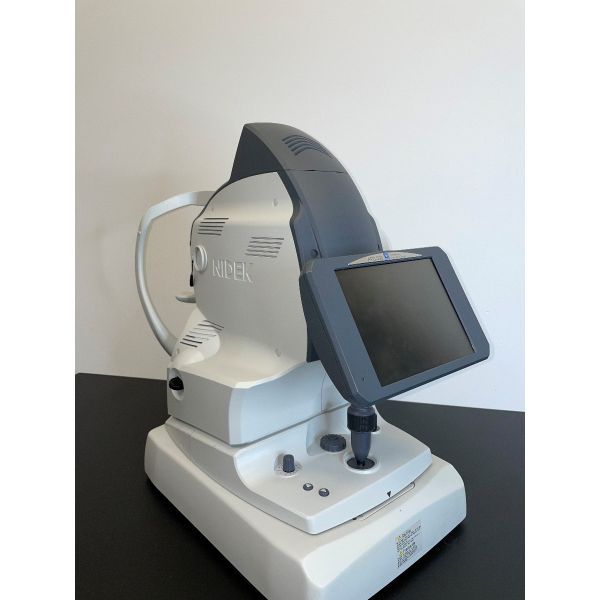

Nidek AFC-330 Non-Mydriatic Automated Fundus Camera
AMERICA North (USA-Canada-Mexico)
The integrated high-resolution CCD camera and microcomputer remove the
complicated cabling, allowing the AFC-330 to communicate via LAN without
the need of an external PC in the screening area.
The AFC-330 pairs leading-edge technology with
exceptionally smooth performance.
Features
Lower Flash Intensity & Quiet Shutter Sound
Angle Of View 45° (33° In Small Pupil Photography Mode)
Working Distance 45.7 mm (from Objective Lens To Cornea)
Minimum Pupil Diameter
Ø4.0 mm (ø3.3 mm In Small Pupil Photography Mode)
Dioptric Compensation For Patient’s Eyes
-33 To +35 D Total
-33 To -7 D With Minus Compensation Lens
-12 To +15 D With No Compensation Lens
+11 To +35 D With Plus Compensation Lens .
Focusing Method
Infrared Focus Split Alignment
Adjustable Range: -12 To +15 D
Light Source
For Observation: Halogen Lamp 12 V 50 W
For Capturing: Xenon Flash Lamp 300 ws
Flash Intensity
17 Levels From F1 (F4.0 +0.8 EV) To F17 (F16 +0.8 EV) 0.5 EV Increments
Internal Fixation Target
LED (maximum 9 Points)
Horizontal Movement
Forward / Backward: 40 mm
Right / Left: 85 mm
Vertical Movement
32 mm
Vertical Movement Of The Chin Rest
62 mm (motorized)
