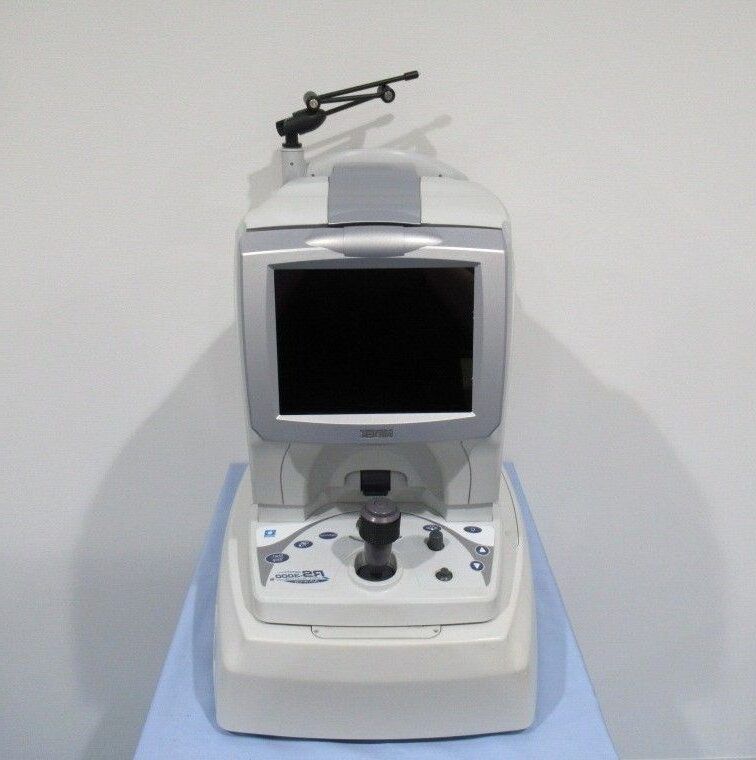

Nidek RS‑3000 Advance OCT

The NIDEK RS-3000 Advance Optical Coherence Tomography (OCT) system is
a high-performance imaging platform designed for advanced retinal diagnostics,
glaucoma assessment, and anterior segment analysis.
Utilizing spectral domain OCT technology, it delivers ultra-high resolution images,
rapid scan speeds, and precise layer segmentation for accurate clinical evaluation.
With integrated confocal scanning laser ophthalmoscope (SLO) fundus imaging,
en face OCT capability, and powerful analysis software,
the RS-3000 Advance supports comprehensive eye care from screening to
complex pathology management.
Optional anterior segment modules expand its utility to corneal and
angle measurements, making it an ideal solution for
ophthalmology clinics seeking speed, accuracy, and reliability.
This unit is available for sale and in excellent condition, ready to
enhance diagnostic capabilities. Available now for sale and in excellent condition,
for each refurbished unit from GMG is thoroughly tested,
offering sustainable eye‑care technology for
all your indispensable modern ophthalmic practices assets .
Spectral Domain OCT with optical resolution: Z: 7 µm, X-Y: 20 µm;
digital resolution: Z: 4 µm, X-Y: 3 µm.
High Scan Speed – Up to 53,000 A-scans/sec for faster exams and
reduced motion artifacts.
Scan Range – X: 3–12 mm (12 mm for line scan), Y: 3–9 mm, Z: 2.1 mm.
Light Source – Superluminescent diode (SLD) at 880 nm.
Fast 3D Acquisition – 1.6 seconds in regular mode.
Integrated Fixation – Internal (637 nm) and external (630/565 nm) fixation lamps.
Auto Alignment with Z-direction adjustment.
Small Pupil Imaging – Minimum pupil diameter: 2.5 mm.
Focus Range – -15 D to +10 D.
Working Distance – 35.5 mm.
Advanced Retinal Analysis – Segmentation of 6+1 retinal layers, macular thickness map,
RNFL thickness map, NFL+GCL+IPL analysis, optic nerve analysis, and follow-up analysis.
Confocal SLO Imaging – 785 nm source, 40° × 30° field of view (zoom to 20° × 15°).
Tiltable 8.4″ Color LCD Display for ease of use.
PC Networking – Compatible with NAVIS-EX image filing software with
DICOM connectivity.
En Face OCT – Visualization of retinal pathology and vascular structure with
selectable depth offsets.
Image Averaging – Up to 120 images for high clarity.
Optional Anterior Segment Module – Corneal thickness measurement/map,
anterior chamber angle (ACA) measurement, AOD500/750, and TISA500/750.
Flexible Scan Patterns – Retina: macula line, cross, map, multi, radial, disc circle,
map, radial. Cornea: line, cross, radial, ACA line.
Follow-up and Tracing Functions – Torsion eye tracker, Tracing HD Plus,
HD checker, select & rescan, auto shot.
Compact Dimensions – Main unit: 380 (W) × 524 (D) × 499–531 (H) mm; weight 34 kg.

OCT Scanning
Principle: Spectral domain OCT
Optical Resolution: Z: 7 µm, X-Y: 20 µm
Digital Resolution: Z: 4 µm, X-Y: 3 µm
Scan Range: X: 3–12 mm, Y: 3–9 mm, Z: 2.1 mm
Light Source: SLD, 880 nm
Scan Speed: Max. 53,000 A-scans/sec
3-D Acquisition Time: 1.6 sec (regular mode)
Internal Fixation Lamp: 637 nm
External Fixation Lamp: 630/565 nm
Auto Alignment: Z direction
Min. Pupil Diameter: 2.5 mm
Focus Range: –15 D to +10 D (VD = 12 mm)
Working Distance: 35.5 mm
Analysis: 6+1 retinal layers segmentation, macular thickness/RNFL maps,
NFL+GCL+IPL analysis, optic nerve analysis, follow-up

Fundus Surface Imaging
Principle: Confocal scanning laser ophthalmoscope (SLO)
SLO Light Source: 785 nm
Field of View: 40° × 30° (zoom: 20° × 15°)

Display & Connectivity
Tiltable 8.4" color LCD display
PC networking available
NAVIS-EX software with DICOM support

Power
AC 100/120/230 V, 50/60 Hz
Power Consumption: 300 VA
Max. Transformer Output: 1,000 VA

Dimensions & Weight (Main Unit)
380 (W) × 524 (D) × 499–531 (H) mm
Weight: 34 kg

Optional Anterior Segment Module
Measurements: Corneal thickness (apex and user-selected sites), ACA, AOD500/750, TISA500/750
Corneal thickness map in radial directions

Optional Motorized Optical Table
639 (W) × 472 (D) × 600–850 (H) mm; 28 kg; AC 100 V; 150 W

Optional PC Rack
620 (W) × 460 (D) × 700 (H) mm; 29 kg
