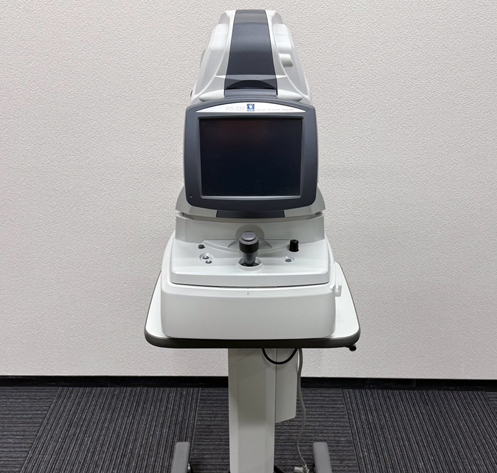

Nidek RS-330 Non-Mydriatic Fundus Camera

Nidek RS-330 Non-Mydriatic Fundus Camera
Advanced Retinal Imaging for Accurate Eye Care
The Nidek RS-330 Non-Mydriatic Fundus Camera
is a high-performance retinal imaging system designed
to deliver exceptional fundus photographs with
minimal patient discomfort. Featuring advanced optics,
automatic focus technology, and high-resolution digital imaging,
the RS-330 enables eye care professionals to
capture detailed retinal images quickly and
efficiently without routine pupil dilation.
Ideal for ophthalmology clinics, optometry practices,
hospitals, diabetic retinopathy screening programs,
and retina specialists, the Nidek RS-330
provides reliable retinal documentation and
streamlined workflow integration through DICOM
and EMR compatibility.

Key Features of the Nidek RS-330
- Non-mydriatic retinal imaging with minimum pupil size of 3.3 mm
- High-resolution digital fundus photography
- 45° retinal field of view
- Automatic focus and exposure control
- Color fundus and red-free imaging modes
- Optional fluorescein angiography (FA)
- Optional wide-field retinal imaging
- DICOM and EMR integration
- Ergonomic patient alignment system
- Fast image acquisition for efficient clinical workflow

Clinical Applications
- The Nidek RS-330 is suitable for:
- Diabetic Retinopathy Screening
- Glaucoma Management
- Retina Disease Documentation
- Macular Degeneration Monitoring
- Routine Eye Examinations
- Ophthalmology Clinics
- Optometry Practices
- Hospital Eye Departments
- Tele-Ophthalmology Programs

Technical Specifications
Camera Type: Non-Mydriatic Digital Fundus Camera
Imaging Modes: Color Fundus, Red-Free, Optional FA
Field of View: 45° Standard
Wide-Field Option: Up to 50–60° (optional)
Minimum Pupil Size: 3.3 mm
Focus System: Auto Focus with Manual Adjustment
Exposure Control: Automatic
Illumination: LED Light Source
Patient Alignment: Internal Fixation Target
Positioning Control: Ergonomic Joystick
Image Resolution: High-Resolution Digital Imaging
Data Management: Patient Database & Image Storage
DICOM Compatibility: Yes
EMR Integration: Supported
Network Capability: Multi-Station Support
Power Supply: AC 100–240 V, 50/60 Hz
Dimensions (Approx.): 230 × 500 × 500 mm
Weight (Approx.): 25–30 kg
